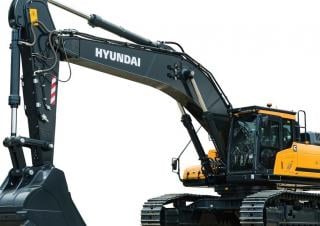

HX520AL Hyundai excavator specs & Dimensions (2020 - 2026)
.jpg)
.jpg)
Visit Hyundai live at
Technical specs - HX520AL Hyundai
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 52.4 t
- Transport length
- 12.26 m
- Transport width
- 2.98 m
- Transport height
- 3.79 m
- Bucket capacity
- 3 m³
- Undercarriage
- LC
- Track width
- 600 mm
- Boom
- MB
- Max. Reach horizontal
- 12.04 m
- Dredging depth
- 7.61 m
- Tear-out force
- 209 kN
- Bucket width
- 1.98 m
- Engine manuf.
- Cummins
- Engine type
- X12
- Engine power
- 298 kW
- Displacement
- 11.8 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 1898 Nm
- No. of cylinders
- 6
- Emission level
- V
More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket
Special equipment
- Diesel particulate filter
-
Yes
- Track adjustment
-
Yes
- Blade
-
No
- Cabin adjustment
-
No
- Overload alert
-
Yes
- Material Handling Excavator
-
No
- Aircondition
-
Yes
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
Download datasheets (PDF)
