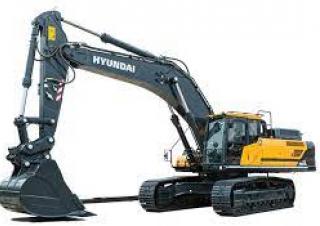

HX480AL Hyundai excavator specs & Dimensions (2020 - 2026)

Ready to change your world

The HX480A L and HX520A L Crawler Excavators are part of Hyundai’s brand new A-series: a fresh generation of construction equipment that complies with the European Stage V emission levels. But it goes much further than that! While fulfilling regulatory demands, Hyundai aimed for a ground-breaking level of customer satisfaction with maximum performance and productivity, better safety, more convenience and improved uptime management. From their robust exterior design to their performance-enhancing smart technologies, these mighty machines open up a world of new possibilities where tiny efforts move mountains. It’s time to experience the Hyundai Effect!

Serviceability and Telematics

Our A-Series excavators are designed with quick, low-effort servicing in mind. Every component and material has been optimised to ensure a long, trouble-free life. Hyundai’s innovative Hi MATE telematics system enables full monitoring of machine activity and performance. Maximum connectivity is integrated to help owners create a smart construction site and protect profitability as their business grows.

The best productivity and fuel efficiency

The HX480A L and HX520A L are powered by a robust Stage V-certified Cummins X12 engine with an innovative integrated after-treatment system that reduces both emissions and maintenance requirements. It delivers all the power you need to handle demanding jobs, along with better fuel efficiency and fast levelling and truck loading times. A range of smart technologies enable precise management of the engine output and pump flow rate. The new EPIC (Electric Pump Independent Control) hydraulic system improves efficiency through automated control of the individual hydraulic pumps. A Lifting work mode is included to improve fine control by boosting RPM, activating power boost and controlling pump flow. Additional features optimise operation and monitoring to enhance productivity every single day.

The technology to improve efficiency

Like all A-Series machines, the HX480A L and HX520A L feature our all-in-one exhaust aftertreatment system, which cuts emissions and operating costs while enhancing reliability and simplifying maintenance.

Less maintenance. More uptime

Easy access for maintenance means regular checks get done faster, giving you more uptime and reducing operating costs. Ground level access to filters, lube fittings and master switches make servicing more convenient. Service intervals have increased by 100% from 500hrs to 1000hrs when using CK-4 engine oil on the following items: engine oil pre-filter engine oil filter fuel filter.

Functionality at your fingertips

Boom-up speed compared to swing speed can be adjusted by activating/deactivating the boom priority function. Arm-in speed can be also tuned by activating/deactivating the arm regeneration function. The operator can save machine settings, so that they are applied when starting the machine. The machine owner can restrict operator access to the set of functions via the menu as well as locking or unlocking it. A password is then needed to access the functions. This option enables smooth movement at the start and stop of swing operation (cushion swing). In addition, it reduces the shaking of the weight when lifting operation (free swing).

Ergonomic for efficient operation

The 8” capacitive-type display is similar to a smartphone to deliver excellent legibility. The centralised switches on the display allow convenient checking of the Adblue/DEF level and temperature outside the cabin. One pedal for straight travel is available for customers’ convenience when long distance travelling or a combination of attachment work with travelling is necessary. A proportional control switch with better speed control provides operators with added convenience where they do time-consuming work. This function can also be switched to control by foot pedal, by changing the setting in the cluster menu. The accelerator, remote air conditioner controller and instrument cluster can be operated using the convenient jog shuttle-type controller.
