HX400L Hyundai excavator specs & Dimensions (2021 - 2026)

Hyundai HX400L is a crawler excavator manufactured since 2021, with a weight of 38.42 tons. It has a transport length of 11.41 met…

Hyundai HX400L is a crawler excavator manufactured since 2021, with a weight of 38.42 tons. It has a transport length of 11.41 meters, a transport width of 3.54 meters, and a transport height of 3.56 meters. The dredging depth is 7.36 meters, and the maximum horizontal reach is 11.05 meters. The bucket capacity ranges from a minimum of 1.46 cubic meters to a maximum of 2.5 cubic meters.

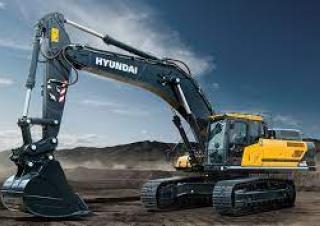

Crawler Excavators Hyundai HX400L
Crawler Excavators Hyundai HX400L
Crawler Excavators Hyundai HX400L
Crawler Excavators Hyundai HX400L

Visit Hyundai live at

Technical specs - HX400L Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
38.42 t
Transport length
11.41 m
Transport width
3.54 m
Transport height
3.56 m
Bucket capacity min.
1.46 m³
Bucket capacity max.
2.5 m³
Max. Reach horizontal
11.05 m
Dredging depth
7.36 m
Engine manuf.
Hyundai
Engine type
HE8.9
Engine power
208.8 kW
Emission level
T3

More technical details, like: bucket capacity, undercarriage, track width, boom, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai HX400L FAQ

When was the Hyundai HX400L manufactured?

The Hyundai HX400L was first produced in 2021.

How much does the Hyundai HX400L weigh?

The Hyundai HX400L weighs 38.42 tons.

What are the transport dimensions of the Hyundai HX400L crawler excavator?

The Hyundai HX400L has a transport length of 11.41 meters, a transport width of 3.54 meters, and a transport height of 3.56 meters.

What are the excavation performance specifications of the Hyundai HX400L?

The Hyundai HX400L has a dredging depth of 7.36 meters and a maximum horizontal reach of 11.05 meters.

What are the bucket capacity specifications of the Hyundai HX400L crawler excavator?

The Hyundai HX400L crawler excavator has a bucket capacity ranging from 1.46 to 2.5 cubic meters.

How much is a Hyundai HX400L Crawler excavator (2021u20132025) worth?

The residual value of the Hyundai HX400L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hyundai HX400L overview

Hyundai HX400L features overview

Audio System

The radio player with a USB-based MP3 player, an integrated Bluetooth hands-free feature, and a built-in microphone allow for phone calls while at work and in transit. The radio player is conveniently located on the right side of the operator to allow for improved access.


Engine

Work max, worth max

Fuel Efficient System Allows Great Performance HX-LT3 Series has an eco-friendly, high-performance engine which ensures both excellent fuel efficiency and high power. With outstanding operating performance proven by rigorous tests at various work sites, it will satisfy any customer's needs. New Variable Power Control HX-LT3 Series minimizes equipment input and output control signals to improve fuel efficiency. Its three-stage power mode ensures the highest performance in any operating environment.


Eco Gauge

Eco gauge enables economic operation of machines. The gauge level and color displays engine torque and fuel efficiency level. On top of that, the status of fuel consumption such as average rate and total amount of fuel consumed is displayed. Hourly and daily based fuel consumption can be checked in the detailed menu as well.


Increase Productivity

It helps you operate machines in efficient. You can check the difference between total engine hours and actual working hours. See how productive your machines are and plan any required cost saving solutions. Hi MATE offers working information such as working / idling hours, fuel consumption and rate.
