HMK 490 LC-HD Hidromek excavator specs & Dimensions (2014 - 2020)

Hidromek HMK 490 LC-HD is a Crawler Excavator manufactured from 2014 to 2020. It has a weight of 51.15 tons and a track width of 6…

Hidromek HMK 490 LC-HD is a Crawler Excavator manufactured from 2014 to 2020. It has a weight of 51.15 tons and a track width of 600 mm. The transport dimensions are 11.65 meters in length, 3.5 meters in width, and 3.35 meters in height. The excavator features a tear-out force of 270.6 kN, a dredging depth of 6.49 meters, and a maximum horizontal reach of 10.77 meters. The bucket width is 1.9 meters with a capacity of 3 cubic meters. Special equipment includes air conditioning, cabin adjustment, diesel particulate filter, material handling excavator, overload alert, quick hitch hydraulic, quick hitch mechanical, and track adjustment.

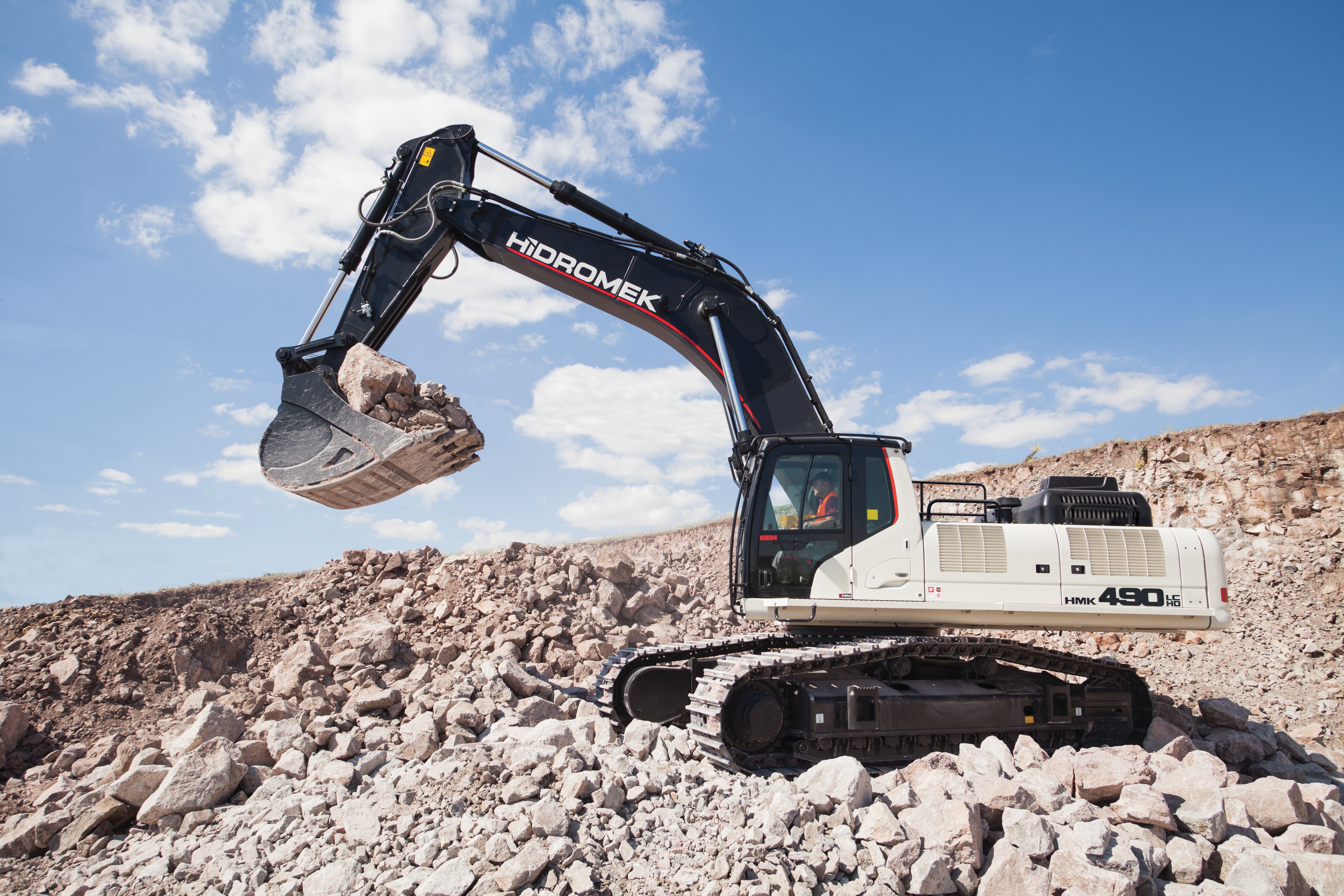

Crawler Excavators Hidromek HMK 490 LC-HD
Crawler Excavators Hidromek HMK 490 LC-HD
Crawler Excavators Hidromek HMK 490 LC-HD
Crawler Excavators Hidromek HMK 490 LC-HD
Crawler Excavators Hidromek HMK 490 LC-HD
Crawler Excavators Hidromek HMK 490 LC-HD
Crawler Excavators Hidromek HMK 490 LC-HD
Crawler Excavators Hidromek HMK 490 LC-HD
Crawler Excavators Hidromek HMK 490 LC-HD
Crawler Excavators Hidromek HMK 490 LC-HD
Crawler Excavators Hidromek HMK 490 LC-HD
Crawler Excavators Hidromek HMK 490 LC-HD

Visit Hidromek live at

Technical specs - HMK 490 LC-HD Hidromek

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
51.15 t
Transport length
11.65 m
Transport width
3.5 m
Transport height
3.35 m
Bucket capacity
3 m³
Undercarriage
LC
Track width
600 mm
Max. Reach horizontal
10.77 m
Dredging depth
6.49 m
Tear-out force
270.6 kN
Bucket width
1.9 m
Model series
HMK
Engine manuf.
Isuzu
Engine type
AH 6 UZ 1 X
Engine power
270 kW
Displacement
9.839 l
Revolutions at max torque
1500 rpm
Max. torque
1435 Nm
No. of cylinders
6

More technical details, like: bucket capacity min., bucket capacity max., boom, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Hidromek HMK 490 LC-HD FAQ

When was the Hidromek HMK 490 LC-HD manufactured?

The Hidromek HMK 490 LC-HD was manufactured from 2014 to 2020.

How much does the Hidromek HMK 490 LC-HD weigh?

The Hidromek HMK 490 LC-HD weighs 51.15 tons.

What are the transport dimensions of the Hidromek HMK 490 LC-HD?

The Hidromek HMK 490 LC-HD has a transport length of 11.65 meters, a transport width of 3.5 meters, and a transport height of 3.35 meters.

What are the undercarriage specifications of the Hidromek HMK 490 LC-HD?

The Hidromek HMK 490 LC-HD has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Hidromek HMK 490 LC-HD?

The Hidromek HMK 490 LC-HD has a dredging depth of 6.49 meters and a maximum horizontal reach of 10.77 meters.

What is the tear-out force of the Hidromek HMK 490 LC-HD?

The Hidromek HMK 490 LC-HD has a tear-out force of 270.6 kN.

What are the specifications of the primary work tool bucket on the Hidromek HMK 490 LC-HD?

The primary work tool bucket of the Hidromek HMK 490 LC-HD has a capacity of 3 cubic meters and a width of 1.9 meters.

How much is a Hidromek HMK 490 LC-HD Crawler excavator (2014u20132020) worth?

The residual value of the Hidromek HMK 490 LC-HD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
