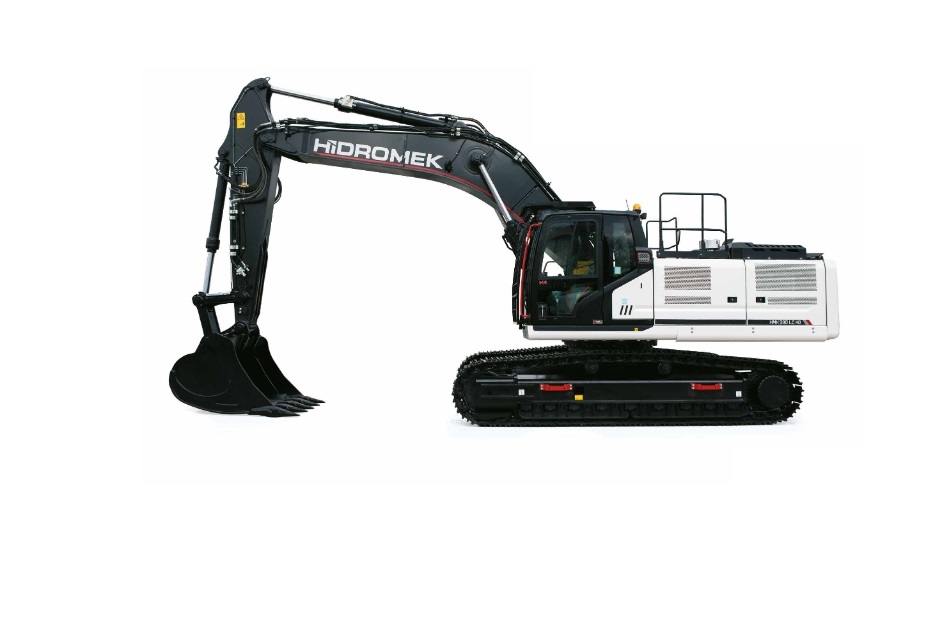

HMK 390 LC HD Hidromek excavator specs & Dimensions (2021 - 2026)

Hidromek HMK 390 LC HD is a Crawler Excavator manufactured since 2021, with a weight of 39.7 tons. It features a track width of 60…

Hidromek HMK 390 LC HD is a Crawler Excavator manufactured since 2021, with a weight of 39.7 tons. It features a track width of 600 mm, a transport length of 10.92 meters, a transport width of 3.3 meters, and a transport height of 3.64 meters. The excavator has a tear-out force of 248.1 kN, a dredging depth of 6.56 meters, and a maximum horizontal reach of 10.15 meters. The bucket width is 1.75 meters, with a capacity of 2.2 cubic meters. Special equipment includes air conditioning, cabin adjustment, a diesel particulate filter, material handling capabilities, an overload alert, a quick hitch hydraulic system, and track adjustment.

Crawler Excavators Hidromek HMK 390 LC HD
Crawler Excavators Hidromek HMK 390 LC HD
Crawler Excavators Hidromek HMK 390 LC HD
Crawler Excavators Hidromek HMK 390 LC HD
Crawler Excavators Hidromek HMK 390 LC HD
Crawler Excavators Hidromek HMK 390 LC HD
Crawler Excavators Hidromek HMK 390 LC HD
Crawler Excavators Hidromek HMK 390 LC HD
Crawler Excavators Hidromek HMK 390 LC HD
Crawler Excavators Hidromek HMK 390 LC HD
Crawler Excavators Hidromek HMK 390 LC HD
Crawler Excavators Hidromek HMK 390 LC HD
Crawler Excavators Hidromek HMK 390 LC HD
Crawler Excavators Hidromek HMK 390 LC HD

Visit Hidromek live at

Technical specs - HMK 390 LC HD Hidromek

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
40.4 t
Transport length
10.92 m
Transport width
3.3 m
Transport height
3.64 m
Bucket capacity
2.2 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.15 m
Dredging depth
6.56 m
Tear-out force
248 kN
Bucket width
1.75 m
Model series
HMK
Engine manuf.
Isuzu
Engine type
AH-6HK1X
Engine power
210 kW
Displacement
7.79 l
Revolutions at max torque
1900 rpm
Max. torque
1080/1500 Nm
No. of cylinders
6
Cylinder bore x stroke
115x125 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Hidromek HMK 390 LC HD FAQ

When was the Hidromek HMK 390 LC HD manufactured?

The Hidromek HMK 390 LC HD was first produced in 2021.

How much does the Hidromek HMK 390 LC HD weigh?

The Hidromek HMK 390 LC HD weighs 39.7 tons.

What are the transport dimensions of the Hidromek HMK 390 LC HD?

The transport dimensions of the Hidromek HMK 390 LC HD are 10.92 meters in length, 3.3 meters in width, and 3.64 meters in height.

What are the undercarriage specifications of the Hidromek HMK 390 LC HD?

The Hidromek HMK 390 LC HD has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Hidromek HMK 390 LC HD?

The Hidromek HMK 390 LC HD has a dredging depth of 6.56 meters, a maximum horizontal reach of 10.15 meters, and is equipped with a monobloc boom.

What are the power ratings of the Hidromek HMK 390 LC HD?

No power rating data is available for the Hidromek HMK 390 LC HD in the provided source data.

What are the specifications of the primary work tool bucket on the Hidromek HMK 390 LC HD?

The primary work tool bucket of the Hidromek HMK 390 LC HD has a capacity of 2.2 cubic meters and a width of 1.75 meters.

How much is a Hidromek HMK 390 LC HD Crawler excavator (2021u20132025) worth?

The residual value of the Hidromek HMK 390 LC HD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
