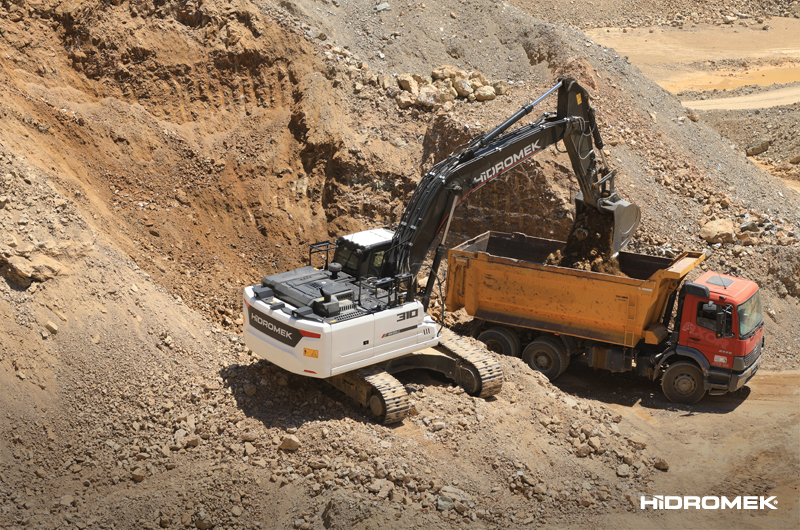

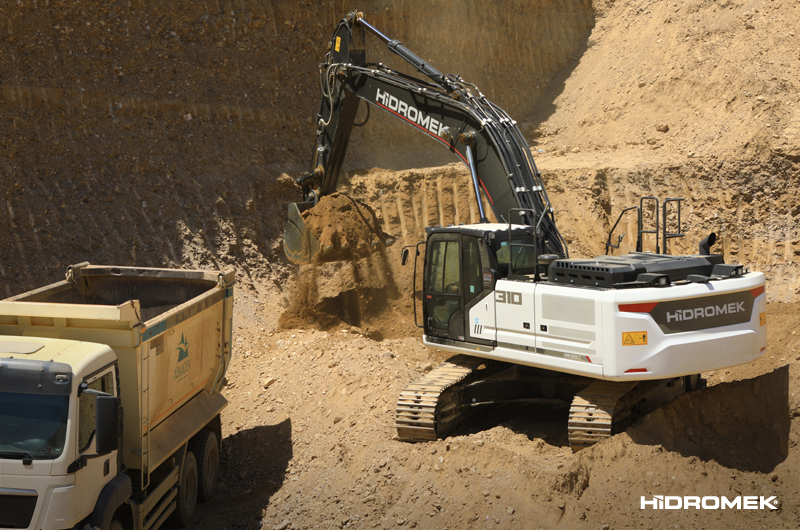

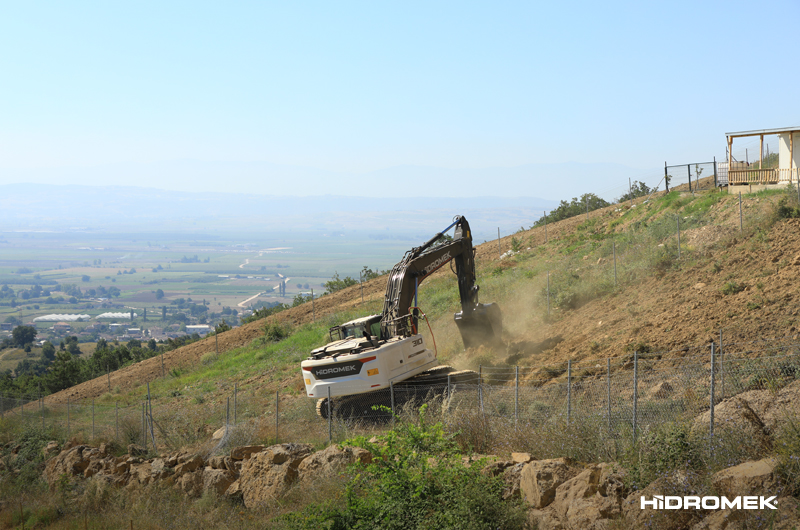

HMK 310 NLC Hidromek excavator specs & Dimensions (2019 - 2021)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Visit Hidromek live at
Technical specs - HMK 310 NLC Hidromek
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 32 t
- Transport length
- 10.88 m
- Transport width
- 2.99 m
- Transport height
- 3.49 m
- Bucket capacity
- 1.6 m³
- Undercarriage
- NLC
- Track width
- 600 mm
- Boom
- MB
- Max. Reach horizontal
- 10.15 m
- Dredging depth
- 6.76 m
- Tear-out force
- 207.9 kN
- Bucket width
- 1.49 m
- Model series
- HMK
- Engine manuf.
- Isuzu
- Engine type
- AQ-6HK1X
- Engine power
- 161 kW
- Displacement
- 7.79 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 940 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 115x125 mm
- Emission level
- Tier 4/EU IV
More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.
Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket
Special equipment
- Diesel particulate filter
-
Yes
- Track adjustment
-
Yes
- Blade
-
No
- Cabin adjustment
-
Yes
- Overload alert
-
Yes
- Material Handling Excavator
-
Yes
- Aircondition
-
Yes
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
Yes
Download datasheets (PDF)
