HMK 145 LC SR Hidromek excavator specs & Dimensions (2021 - 2026)

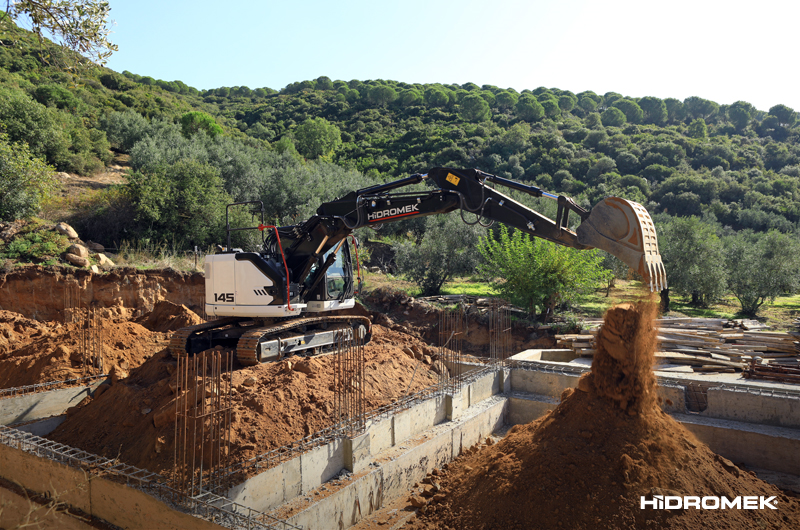

Hidromek HMK 145 LC SR is a Crawler Excavator manufactured since 2021. It has a weight of 16.7 tons and a track width of 500 mm. T…

Hidromek HMK 145 LC SR is a Crawler Excavator manufactured since 2021. It has a weight of 16.7 tons and a track width of 500 mm. The transport dimensions are 7.45 meters in length, 2.49 meters in width, and 2.82 meters in height. The excavator features a tear-out force of 98.06 kN, a dredging depth of 5.36 meters, and a maximum horizontal reach of 8.04 meters. The bucket width is 0.6 meters with a capacity of 0.6 cubic meters.

Crawler Excavators Hidromek HMK 145 LC SR
Crawler Excavators Hidromek HMK 145 LC SR
Crawler Excavators Hidromek HMK 145 LC SR
Crawler Excavators Hidromek HMK 145 LC SR

Visit Hidromek live at

Technical specs - HMK 145 LC SR Hidromek

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.05 t
Transport length
7.52 m
Transport width
2.51 m
Transport height
2.96 m
Bucket capacity
0.6 m³
Undercarriage
LC
Track width
500 mm
Boom
MB
Max. Reach horizontal
8.2 m
Dredging depth
5.36 m
Tear-out force
98.06 kN
Bucket width
0.6 m
Model series
HMK
Engine manuf.
Isuzu
Engine type
AR-4JJ1X
Engine power
78.5 kW
Displacement
2.999 l
Revolutions at max torque
2000 rpm
Max. torque
375/1800 Nm
No. of cylinders
4
Cylinder bore x stroke
95.4x104.9 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hidromek HMK 145 LC SR FAQ

When was the Hidromek HMK 145 LC SR manufactured?

The Hidromek HMK 145 LC SR was first produced in 2021.

How much does the Hidromek HMK 145 LC SR weigh?

The Hidromek HMK 145 LC SR weighs 16.7 tons.

What are the transport dimensions of the Hidromek HMK 145 LC SR?

The transport dimensions of the Hidromek HMK 145 LC SR are 7.45 meters in length, 2.49 meters in width, and 2.82 meters in height.

What are the undercarriage specifications of the Hidromek HMK 145 LC SR?

The Hidromek HMK 145 LC SR has a long undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Hidromek HMK 145 LC SR?

The Hidromek HMK 145 LC SR has a dredging depth of 5.36 meters, a maximum horizontal reach of 8.04 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Hidromek HMK 145 LC SR?

The Hidromek HMK 145 LC SR has a tear-out force of 98.06 kN.

What are the bucket specifications of the Hidromek HMK 145 LC SR excavator?

The Hidromek HMK 145 LC SR has a bucket capacity of 0.6 cubic meters and a bucket width of 0.6 meters.

How much is a Hidromek HMK 145 LC SR Crawler excavator (2021u20132025) worth?

The residual value of the Hidromek HMK 145 LC SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
