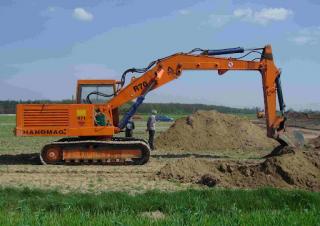

R70 Hanomag excavator specs & Dimensions (1970 - 1980)

Hanomag R70 is a Crawler Excavator manufactured from 1970 to 1980. It has a weight of 15.9 tons, a track width of 700 mm, a transp…

Hanomag R70 is a Crawler Excavator manufactured from 1970 to 1980. It has a weight of 15.9 tons, a track width of 700 mm, a transport length of 6.3 meters, a transport width of 2.4 meters, and a transport height of 2.9 meters. The dredging depth is 4.6 meters, and the bucket width is 1.1 meters.

Crawler Excavators Hanomag R70

Technical specs - R70 Hanomag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.9 t
Transport length
6.3 m
Transport width
2.4 m
Transport height
2.9 m
Track width
700 mm
Boom
MB
Dredging depth
4.6 m
Bucket width
1.1 m

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, max. reach horizontal, tear-out force, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, max. reach horizontal, tear-out force, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hanomag R70 FAQ

When was the Hanomag R70 manufactured?

The Hanomag R70 was manufactured from 1970 to 1980.

How much does the Hanomag R70 weigh?

The Hanomag R70 weighs 15.9 tons.

What are the transport dimensions of the Hanomag R70 crawler excavator?

The Hanomag R70 has a transport length of 6.3 meters, a transport width of 2.4 meters, and a transport height of 2.9 meters.

What is the track width of the Hanomag R70 crawler excavator?

The Hanomag R70 crawler excavator has a track width of 700 mm.

What are the excavation performance specifications of the Hanomag R70?

The Hanomag R70 has a dredging depth of 4.6 meters and is equipped with a Monobloc boom.

What is the bucket width of the Hanomag R70 crawler excavator?

The bucket width of the Hanomag R70 crawler excavator is 1.1 meters.
