FR80E Foton Lovol excavator specs & Dimensions (2017 - 2026)

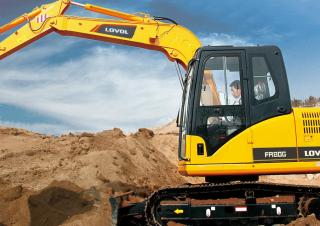

Foton Lovol FR80E is a crawler excavator manufactured since 2017. It has a weight of 7.8 tons and a track width of 450 mm. The tra…

Foton Lovol FR80E is a crawler excavator manufactured since 2017. It has a weight of 7.8 tons and a track width of 450 mm. The transport dimensions are 6.1 meters in length, 2.275 meters in width, and 2.65 meters in height. The excavator features a tear-out force of 56 kN, a dredging depth of 4 meters, and a maximum horizontal reach of 6.335 meters. The bucket capacity is 0.32 cubic meters.

Crawler Excavators Foton Lovol FR80E

Technical specs - FR80E Foton Lovol

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.8 t
Transport length
6.1 m
Transport width
2.275 m
Transport height
2.65 m
Bucket capacity
0.32 m³
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.335 m
Dredging depth
4.05 m
Tear-out force
56 kN
Model series
FR
Engine manuf.
Yanmar
Engine type
4TNV98
Engine power
43.1 kW
Displacement
3.059 l
Revolutions at max torque
1800 rpm
Max. torque
268 Nm
No. of cylinders
4
Cylinder bore x stroke
98x110 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Foton Lovol FR80E FAQ

When was the Foton Lovol FR80E manufactured?

The Foton Lovol FR80E was first produced in 2017.

How much does the Foton Lovol FR80E weigh?

The Foton Lovol FR80E weighs 7.8 tons.

What are the transport dimensions of the Foton Lovol FR80E?

The Foton Lovol FR80E has a transport length of 6.1 meters, a transport width of 2.28 meters, and a transport height of 2.65 meters.

What is the track width of the Foton Lovol FR80E's undercarriage?

The Foton Lovol FR80E has a track width of 450 mm.

What are the excavation performance specifications of the Foton Lovol FR80E?

The Foton Lovol FR80E has a dredging depth of 4.05 meters, a maximum horizontal reach of 6.335 meters, and features a monobloc boom.

What power rating information is available for the Foton Lovol FR80E?

There is no power rating information available for the Foton Lovol FR80E in the provided data.

What is the bucket capacity of the Foton Lovol FR80E?

The Foton Lovol FR80E has a bucket capacity of 0.32 cubic meters.
