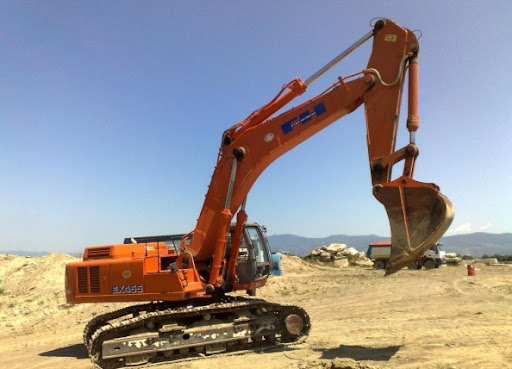

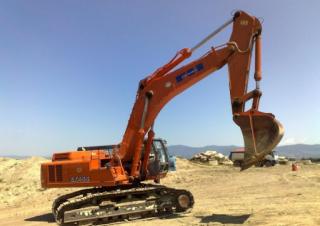

EX 455 BEH Fiat Kobelco excavator specs & Dimensions (2002 - 2005)

Fiat Kobelco EX 455 BEH is a crawler excavator manufactured from 2002 to 2005, with a weight of 46.5 tons. It features a track wid…

Fiat Kobelco EX 455 BEH is a crawler excavator manufactured from 2002 to 2005, with a weight of 46.5 tons. It features a track width of 600 mm, a transport length of 11.47 meters, a transport width of 2.89 meters, and a transport height of 4.3 meters. The excavator is equipped with air conditioning and an overload alert system.

Crawler Excavators Fiat Kobelco EX 455 BEH

Technical specs - EX 455 BEH Fiat Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
46.5 t
Transport length
11.47 m
Transport width
2.89 m
Transport height
4.3 m
Bucket capacity
2.26 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Engine manuf.
Isuzu
Engine type
6 WG 1 TQA
Engine power
225 kW

More technical details, like: bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Fiat Kobelco EX 455 BEH FAQ

When was the Fiat Kobelco EX 455 BEH manufactured?

The Fiat Kobelco EX 455 BEH was manufactured from 2002 to 2005.

How much does the Fiat Kobelco EX 455 BEH weigh?

The Fiat Kobelco EX 455 BEH weighs 46.5 tons.

What are the transport dimensions of the Fiat Kobelco EX 455 BEH?

The Fiat Kobelco EX 455 BEH has a transport length of 11.47 meters, a transport width of 2.89 meters, and a transport height of 4.3 meters.

What are the undercarriage specifications of the Fiat Kobelco EX 455 BEH?

The Fiat Kobelco EX 455 BEH has a long undercarriage with a track width of 600 mm.

What type of boom does the Fiat Kobelco EX 455 BEH have?

The Fiat Kobelco EX 455 BEH has a monobloc boom.

What is the bucket capacity of the Fiat Kobelco EX 455 BEH?

The bucket capacity of the Fiat Kobelco EX 455 BEH is 2.26 cubic meters.

How much is a Fiat Kobelco EX 455 BEH Crawler excavator (2002u20132005) worth?

The residual value of the Fiat Kobelco EX 455 BEH depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
