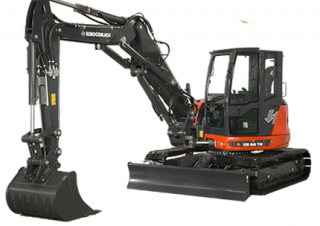

ES 95 TR 4 Eurocomach excavator specs & Dimensions (2016 - 2018)

Eurocomach ES 95 TR 4 is a Crawler Excavator manufactured from 2016 to 2018. It has a weight of 9.9 tons and a track width of 450 …

Eurocomach ES 95 TR 4 is a Crawler Excavator manufactured from 2016 to 2018. It has a weight of 9.9 tons and a track width of 450 mm. The transport dimensions are 7.03 meters in length, 2.32 meters in width, and 2.56 meters in height. The excavator features a tear-out force of 58.5 kN, a dredging depth of 4.57 meters, and a maximum horizontal reach of 7.73 meters. Special equipment includes air conditioning, a blade, cabin adjustment, a diesel particulate filter, material handling capabilities, an overload alert, and both hydraulic and mechanical quick hitches.

Crawler Excavators Eurocomach ES 95 TR 4

Technical specs - ES 95 TR 4 Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.9 t
Transport length
7.03 m
Transport width
2.32 m
Transport height
2.56 m
Track width
450 mm
Boom
VA
Max. Reach horizontal
7.73 m
Dredging depth
4.57 m
Tear-out force
58.5 kN
Model series
MME
Engine manuf.
Yanmar
Engine type
4TNV98CT
Engine power
53.7 kW
Displacement
3.319 l
Revolutions at max torque
2100 rpm
No. of cylinders
4
Emission level
III A

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Eurocomach ES 95 TR 4 FAQ

When was the Eurocomach ES 95 TR 4 manufactured?

The Eurocomach ES 95 TR 4 was manufactured from 2016 to 2018.

How much does the Eurocomach ES 95 TR 4 weigh?

The Eurocomach ES 95 TR 4 weighs 9.9 tons.

What are the transport dimensions of the Eurocomach ES 95 TR 4?

The Eurocomach ES 95 TR 4 has a transport length of 7.03 meters, a transport width of 2.32 meters, and a transport height of 2.56 meters.

What is the track width of the Eurocomach ES 95 TR 4's undercarriage?

The Eurocomach ES 95 TR 4 has a track width of 450 mm.

What are the excavation performance specifications of the Eurocomach ES 95 TR 4?

The Eurocomach ES 95 TR 4 has a dredging depth of 4.57 meters, a maximum horizontal reach of 7.73 meters, and features an adjustable boom.

What is the tear-out force of the Eurocomach ES 95 TR 4, and are there any power ratings available?

The Eurocomach ES 95 TR 4 has a tear-out force of 58.5 kN. No power ratings are provided in the available data.

How much is a Eurocomach ES 95 TR 4 Crawler excavator (2016u20132018) worth?

The residual value of the Eurocomach ES 95 TR 4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
