ES 90 UR Eurocomach excavator specs & Dimensions (2014 - 2021)

Eurocomach ES 90 UR is a Crawler Excavator manufactured from 2014 to 2021. It has a weight of 9.1 tons and a track width of 450 mm…

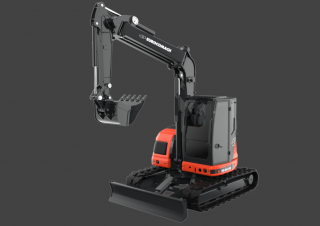

Eurocomach ES 90 UR is a Crawler Excavator manufactured from 2014 to 2021. It has a weight of 9.1 tons and a track width of 450 mm. The transport dimensions are 5.84 meters in length, 2.32 meters in width, and 2.56 meters in height. The excavator features a tear-out force of 58.5 kN, a dredging depth of 4.22 meters, and a maximum horizontal reach of 6.45 meters. Special equipment includes air conditioning, a blade, cabin adjustment, material handling capabilities, an overload alert, and both hydraulic and mechanical quick hitches.

Crawler Excavators Eurocomach ES 90 UR

Technical specs - ES 90 UR Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.1 t
Transport length
5.84 m
Transport width
2.32 m
Transport height
2.56 m
Track width
450 mm
Boom
SKA
Max. Reach horizontal
6.45 m
Dredging depth
4.22 m
Tear-out force
58.5 kN
Model series
MME
Engine manuf.
Yanmar
Engine type
4TNV98
Engine power
46.3 kW
Displacement
3.319 l
Max. torque
239,1/1650 Nm
Emission level
III

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Eurocomach ES 90 UR FAQ

When was the Eurocomach ES 90 UR manufactured?

The Eurocomach ES 90 UR was manufactured from 2014 to 2021.

How much does the Eurocomach ES 90 UR weigh?

The Eurocomach ES 90 UR weighs 9.1 tons.

What are the transport dimensions of the Eurocomach ES 90 UR?

The Eurocomach ES 90 UR has a transport length of 5.84 meters, a transport width of 2.32 meters, and a transport height of 2.56 meters.

What is the track width of the Eurocomach ES 90 UR's undercarriage?

The Eurocomach ES 90 UR has a track width of 450 mm.

What are the excavation performance specifications of the Eurocomach ES 90 UR?

The Eurocomach ES 90 UR has a dredging depth of 4.22 meters, a maximum horizontal reach of 6.45 meters, and features a lateral articulated boom.

What is the power rating of the Eurocomach ES 90 UR?

The source data does not provide a power rating for the Eurocomach ES 90 UR.

How much is a Eurocomach ES 90 UR Crawler excavator (2014u20132021) worth?

The residual value of the Eurocomach ES 90 UR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
