95 UR Eurocomach excavator specs & Dimensions (2019 - 2023)

Eurocomach 95 UR is a Crawler Excavator manufactured since 2019, with a weight of 9.1 t and a track width of 450 mm. It has a tran…

Eurocomach 95 UR is a Crawler Excavator manufactured since 2019, with a weight of 9.1 t and a track width of 450 mm. It has a transport length of 5.84 m, a transport width of 2.32 m, and a transport height of 2.56 m. The machine features a tear-out force of 58.5 kN, a dredging depth of 4.22 m, and a maximum horizontal reach of 6.45 m. Special equipment includes air conditioning, a blade, cabin adjustment, a diesel particulate filter, material handling capabilities, an overload alert, and both hydraulic and mechanical quick hitch systems.

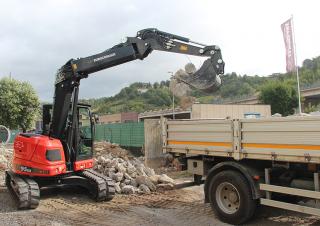

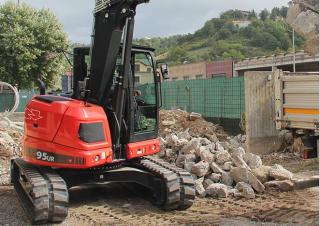

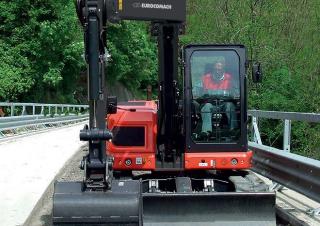

Crawler Excavators Eurocomach 95 UR
Crawler Excavators Eurocomach 95 UR
Crawler Excavators Eurocomach 95 UR
Crawler Excavators Eurocomach 95 UR
Crawler Excavators Eurocomach 95 UR
Crawler Excavators Eurocomach 95 UR

Technical specs - 95 UR Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.1 t
Transport length
5.84 m
Transport width
2.32 m
Transport height
2.56 m
Track width
450 mm
Boom
SKA
Max. Reach horizontal
6.45 m
Dredging depth
4.22 m
Tear-out force
58.5 kN
Model series
MME
Engine manuf.
Yanmar
Engine type
4TNV98CT
Engine power
53.7 kW
Displacement
3.319 l
Revolutions at max torque
2300 rpm
Max. torque
308/1365 Nm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Eurocomach 95 UR FAQ

When was the Eurocomach 95 UR manufactured?

The Eurocomach 95 UR was manufactured from 2019 to 2023.

How much does the Eurocomach 95 UR weigh?

The Eurocomach 95 UR weighs 9.1 tons.

What are the transport dimensions of the Eurocomach 95 UR?

The Eurocomach 95 UR has a transport length of 5.84 meters, a transport width of 2.32 meters, and a transport height of 2.56 meters.

What is the track width of the Eurocomach 95 UR's undercarriage?

The Eurocomach 95 UR has a track width of 450 mm.

What are the excavation performance specifications of the Eurocomach 95 UR?

The Eurocomach 95 UR has a dredging depth of 4.22 meters, a maximum horizontal reach of 6.45 meters, and features a lateral articulated boom.

What is the tear-out force of the Eurocomach 95 UR?

The Eurocomach 95 UR has a tear-out force of 58.5 kN.

How much is a Eurocomach 95 UR Crawler excavator (2019u20132023) worth?

The residual value of the Eurocomach 95 UR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
