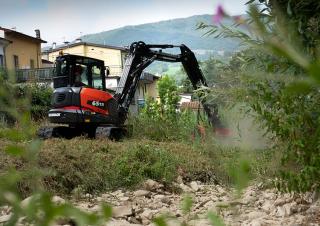

65 TR Eurocomach excavator specs & Dimensions (2019 - 2023)

Eurocomach 65 TR is a Crawler Excavator manufactured since 2019, with a weight of 6.29 t. It features a track width of 400 mm, a t…

Eurocomach 65 TR is a Crawler Excavator manufactured since 2019, with a weight of 6.29 t. It features a track width of 400 mm, a transport length of 5.89 m, a transport width of 1.98 m, and a transport height of 2.62 m. The machine has a tear-out force of 53 kN, a dredging depth of 3.85 m, and a maximum horizontal reach of 6.87 m. Special equipment includes air conditioning, a blade, cabin adjustment, a diesel particulate filter, material handling capabilities, an overload alert, and both hydraulic and mechanical quick hitch systems.

Crawler Excavators Eurocomach 65 TR
Crawler Excavators Eurocomach 65 TR
Crawler Excavators Eurocomach 65 TR
Crawler Excavators Eurocomach 65 TR
Crawler Excavators Eurocomach 65 TR
Crawler Excavators Eurocomach 65 TR
Crawler Excavators Eurocomach 65 TR
Crawler Excavators Eurocomach 65 TR

Technical specs - 65 TR Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.29 t
Transport length
5.89 m
Transport width
1.98 m
Transport height
2.62 m
Track width
400 mm
Boom
VA
Max. Reach horizontal
6.87 m
Dredging depth
3.85 m
Tear-out force
53 kN
Model series
MME
Engine manuf.
Kubota
Engine type
V2607-CR-T
Engine power
44.3 kW
Displacement
2.615 l
Revolutions at max torque
2300 rpm
No. of cylinders
4
Emission level
Stage V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Eurocomach 65 TR FAQ

When was the Eurocomach 65 TR manufactured?

The Eurocomach 65 TR was manufactured from 2019 to 2023.

How much does the Eurocomach 65 TR weigh?

The Eurocomach 65 TR weighs 6.29 tons.

What are the transport dimensions of the Eurocomach 65 TR crawler excavator?

The Eurocomach 65 TR has a transport length of 5.89 meters, a transport width of 1.98 meters, and a transport height of 2.62 meters.

What is the track width of the Eurocomach 65 TR's undercarriage?

The Eurocomach 65 TR has a track width of 400 mm.

What are the excavation performance specifications of the Eurocomach 65 TR?

The Eurocomach 65 TR has a dredging depth of 3.85 meters, a maximum horizontal reach of 6.87 meters, and features an adjustable boom.

What is the power rating of the Eurocomach 65 TR?

The source data does not provide the power rating for the Eurocomach 65 TR.

How much is a Eurocomach 65 TR Crawler excavator (2019u20132023) worth?

The residual value of the Eurocomach 65 TR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
