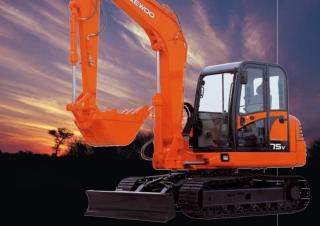

Solar 75 V Doosan excavator specs & Dimensions (2003 - 2008)

Best Performance Ensured at Any Work Site

SOLAR 75-V ensures best performance with powerful excavating force and high-tech hydraulic system for better operation efficiency at any work site! Excellent performance is its basic feature! Its excellent performance with safety and convenience taken into account will help safe and convenient operation.

Bucket End and Dozer Blade Arrangement

The bucket end is designed to reach the dozer blade when the arm is folded. This feature improves efficiency in grading operation as well as stone lifting operation.

Large-capacity Dozer Blade

This machine is equipped with a large-capacity dozer blade (422 x 2,200 mm) ensuring excellent earth-moving operation. Its powerful dozer blade force can be used efficiently for operations on a slope.

Highest Dump Height

The maximum dump height of 4,290mm is the highest among the same-grade machines and enables easy loading operation onto a 15-ton dump truck.

Large-Capacity Fuel Tank

This machine is equipped with a large-capacity fuel tank (110 ℓ) enabling continuous operation for two days before refueling. The fuel port has been raised in height to prevent oil leak when operating on a slope.

Quick and Easy Maintenance of Optimal

Sturdy SOLAR 75-V! Special and scrupulous care has been given to even unseen features for trouble free operation and easy maintenance.

Radiator

The large-capacity radiator provides excellent performance in severe and continuous operations. Simply removing the counterweight enables the radiator to be removed for easy maintenance.

Low operating noise

The overall operating noise of the machine has been dramatically reduced for environmental considerations. The low noise cabin design has lowered the noise in the cabin to a comfortable 74 dB(A) even during travel and operation. This ensures a more comfortable and pleasant working environment.

Powerful Excavating Force

Powerful excavating force of 5.5 tons from the 52.3HP (SAE J1349, net) engine achieves excellent performance quickly within a short time under any working conditions. In addition, a rpm controlling lever is installed on the left control lever in the cabin to make it easy to control working speed.

Low-Noise High-Power Engine

The 52.3HP(SAE J1349, net) engine produces outstanding power and is known for its durability. This results in excellent operation in high-load operations. In addition, it features a low noise and low emissions suitable for operation in noise sensitive areas and at night.

Composite Operation Capability Improved

Maximum combined operation capability is guaranteed by a sophisticated engine and hydraulic system control system. This system allows the engine and hydraulic system to be controlled to fit various working environments such as excavating or lifting operations requiring high pressure and large hydraulic flow or grading operations requiring low pressure and small hydraulic flow rate.

Breaker-Dedicated Line Installed

The hydraulic pipes have been installed up to the front end of the arm as standard equipment, for easy installation of the hydraulic breaker. A lock device is mounted on the end of the hydraulic line to prevent leakage of hydraulic oil when connecting the breaker.

Dual-Filter Air Cleaner

The high-performance dual-filter air cleaner eliminates dust from entering the engine. The cover is an one-touch open/close type allowing easy maintenance.

Dozer Blade Control Lever

The dozer blade control lever is positioned above the right-hand control stand to secure easy and convenient access.

Swing Mechanism

High-torque, axial piston motor with planetary reduction gear bathed in oil. Swing circle is single-row, shear type ball bearing with induction-hardened internal gear. Internal gear and pinion gear immersed in lubricant. Swing parking brake is spring-set, hydraulic-released disc type. A two position swing lock secures the super-structure for transportation.

Drive

Each track is driven by an independent, high-torque, axial piston motor through planetary reduction gear. Two levers or foot pedal control provide smooth travel or counter-rotation upon demand.

Convenient and Comfortable Operation

This standard-duty machine offers a spacious operating area that is only found in medium and heavy-duty machines. The working controls in the cabin are ergonomically designed to ensure convenience and comfort for the operator, resulting in operator comfort and convenient operation.

Comfortable Operating Area

The internal operating controls are arranged in a convenient and ergonomic fashion, allowing for maximized operating efficiency. A large capacity air-conditioning system has been installed for operator comfort in all seasons. The open and spacious cabin provides the operator with a wide field of view for the best possible working conditions.

Rectangular Structure Cabin

For safety purposes and to protect the operator against falling objects at various working sites, the cabin structure is designed in a rectangular shape, ensuring operator safety.

Control Levers and Switches

Hydraulic joystick type lever is adopted for convenient control, ensuring precise control and excellent maneuverability. Various switches are centrally arranged to the right side of the seat for improved accessibility.

High-Output Air-Conditioner and Defroster

The air-conditioner capacity has been greatly improved, and the vents have been installed at both the front and rear of the operator's seat to maximize air-conditioning efficiency. A defroster has been installed to prevent the front windshield from becoming frosted in the cold season, resulting in safer operation.

Fan Belt Easy Tension Adjustment and Replacement

The spacious area around the fan belt enables easy tension adjustment and replacement. The mounted B-type belt has a greatly extended replacement interval.
