DX85R-3 Doosan excavator specs & Dimensions (2013 - 2019)

Doosan DX85R-3 is a Crawler Excavator manufactured from 2013 to 2019, with a weight of 8.6 tons. It features a track width of 450 …

Doosan DX85R-3 is a Crawler Excavator manufactured from 2013 to 2019, with a weight of 8.6 tons. It features a track width of 450 mm, a transport length of 6.265 meters, a transport width of 2.3 meters, and a transport height of 2.64 meters. The machine has a dredging depth of 4.725 meters and a maximum horizontal reach of 7.295 meters. The bucket width is 0.813 meters with a capacity of 0.28 cubic meters. Special equipment includes air conditioning, a blade, a diesel particulate filter, and an overload alert system.

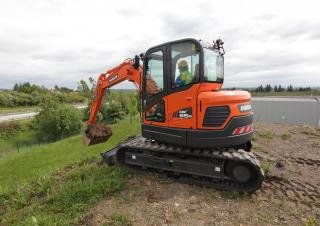

Crawler Excavators Doosan DX85R-3
Crawler Excavators Doosan DX85R-3
Crawler Excavators Doosan DX85R-3
Crawler Excavators Doosan DX85R-3

Technical specs - DX85R-3 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.6 t
Transport length
6.265 m
Transport width
2.3 m
Transport height
2.64 m
Bucket capacity
0.28 m³
Track width
450 mm
Max. Reach horizontal
7.295 m
Dredging depth
4.725 m
Tear-out force
53.9 kN
Bucket width
0.813 m
Model series
DX
Engine manuf.
Yanmar
Engine type
4TNV98
Engine power
44.3 kW
Displacement
3.319 l
Revolutions at max torque
1365 rpm
Max. torque
241 Nm
No. of cylinders
4
Cylinder bore x stroke
98x110 mm
Emission level
IIIB

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX85R-3 FAQ

When was the Doosan DX85R-3 manufactured?

The Doosan DX85R-3 was manufactured from 2013 to 2019.

How much does the Doosan DX85R-3 weigh?

The Doosan DX85R-3 weighs 8.6 tons.

What are the transport dimensions of the Doosan DX85R-3 crawler excavator?

The Doosan DX85R-3 has a transport length of 6.27 meters, a transport width of 2.3 meters, and a transport height of 2.64 meters.

What is the track width of the Doosan DX85R-3's undercarriage?

The Doosan DX85R-3 has a track width of 450 mm.

What are the excavation performance specifications of the Doosan DX85R-3?

The Doosan DX85R-3 has a dredging depth of 4.725 meters and a maximum horizontal reach of 7.295 meters.

What is the tear-out force of the Doosan DX85R-3?

The Doosan DX85R-3 has a tear-out force of 53.9 kN.

What are the specifications of the primary work tool bucket on the Doosan DX85R-3?

The primary work tool bucket of the Doosan DX85R-3 has a capacity of 0.28 cubic meters and a width of 0.813 meters.

How much is a Doosan DX85R-3 Crawler excavator (2013u20132019) worth?

The residual value of the Doosan DX85R-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Doosan DX85R-3 overview

Doosan DX85R-3 features overview

Maximum controllability in every situation

Proportional auxiliary flow means that the excavator’s power is matched by smooth, confident manoeuvres. Using sensitive joysticks and clear controls positioned for convenient access, you are able to work safely and confidently with minimum effort. Even the switches have been ergonomically placed on the right-hand control stand and positioned according to the frequency with which they are used. The highest standards of efficiency are just a finger’s reach away.


Colour LCD monitor panel

The new 5.7” colour LCD panel is located within the operator’s line of sight. The monitor is user-friendly and gives access to machine settings, maintenance data and auxiliary flow control. Any abnormality is clearly displayed on the screen, allowing you to work safely and confidently with an accurate overview of all conditions.


Hydraulic and electronic system

Drive

Each track is driven by an independent, high-torque axial piston motor through a planetary reduction gearbox. Two levers / foot pedals guarantee smooth travel with counter-rotation on demand.


Undercarriage

Undercarriage

Very robust construction throughout. All welded structures designed to limit stresses. High-quality, durable materials. Lateral chassis welded and rigidly attached to undercarriage. Track rollers lubricated for life. Idlers and sprockets fitted with floating seals. Track shoes (option) made of induction-hardened alloy with triple grouser. Heat-treated connecting pins. Hydraulic track adjuster with shock-absorbing tension mechanism.
