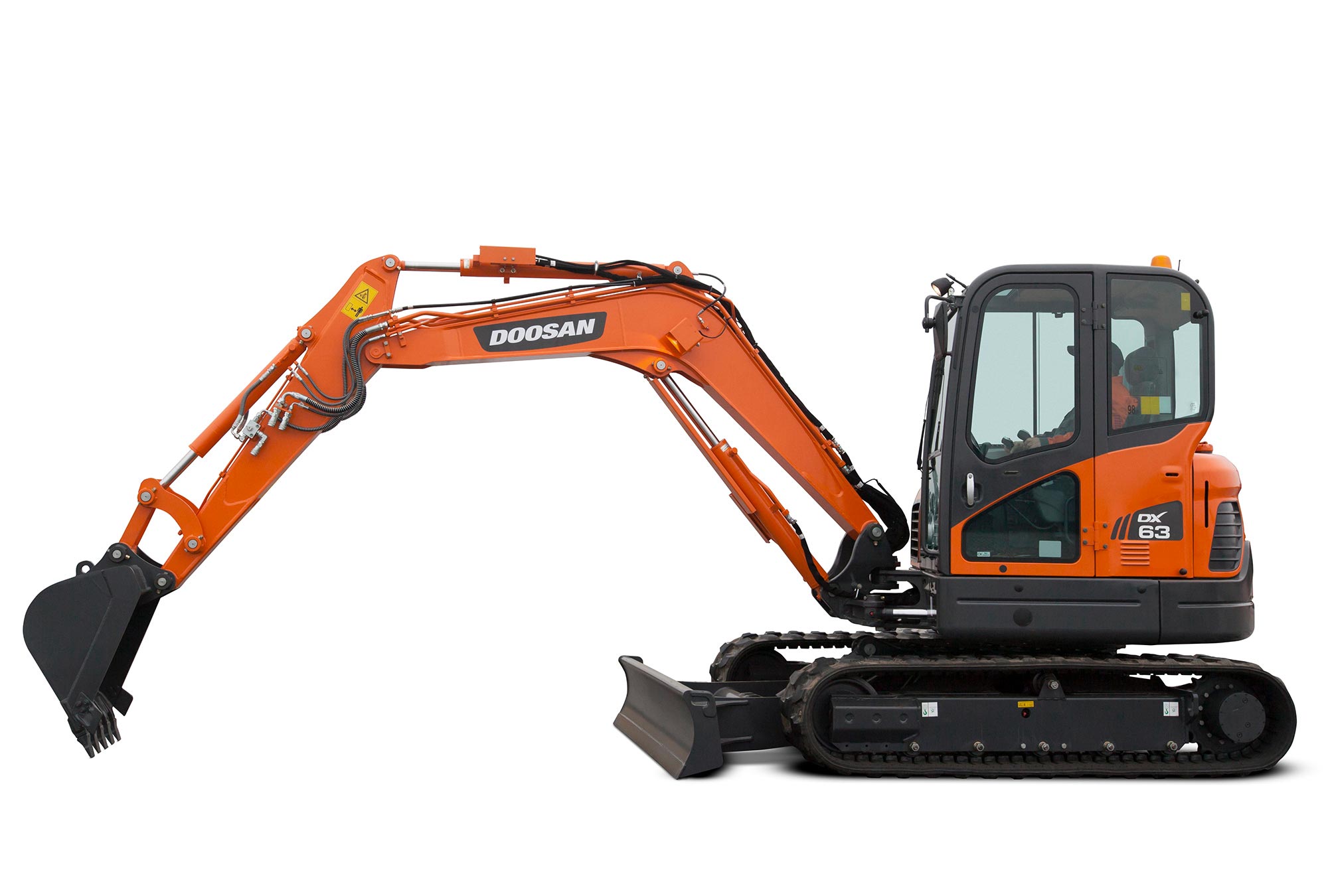

DX63-3 Doosan excavator specs & Dimensions (2019 - 2023)

Doosan DX63-3 is a Crawler Excavator manufactured since 2019. It has a weight of 6.25 t and a track width of 400 mm. The transport…

Doosan DX63-3 is a Crawler Excavator manufactured since 2019. It has a weight of 6.25 t and a track width of 400 mm. The transport dimensions are 5.67 m in length, 1.98 m in width, and 2.13 m in height. The excavator features a tear-out force of 43.2 kN, a dredging depth of 3.815 m, and a maximum horizontal reach of 6.06 m. The bucket width is 0.3 m, with a capacity ranging from 0.069 m³ to 0.179 m³. Special equipment includes air conditioning and a blade.

Crawler Excavators Doosan DX63-3

Technical specs - DX63-3 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.25 t
Transport length
5.67 m
Transport width
1.98 m
Transport height
2.13 m
Bucket capacity
0.069 m³
Bucket capacity min.
0.07 m³
Bucket capacity max.
0.18 m³
Track width
400 mm
Max. Reach horizontal
6.06 m
Dredging depth
3.815 m
Tear-out force
43.2 kN
Bucket width
0.3 m
Engine manuf.
Yanmar
Engine type
4TNV98C
Engine power
44.3 kW
Dimension lxwxh
756.9x556.3x838.2 mm
Displacement
3.319 l
Revolutions at max torque
2100 rpm
Max. torque
241/1400 Nm
No. of cylinders
4
Cylinder bore x stroke
98x110 mm
Emission level
Stage V

More technical details, like: undercarriage, boom, model series are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX63-3 FAQ

When was the Doosan DX63-3 manufactured?

The Doosan DX63-3 was manufactured from 2019 to 2023.

How much does the Doosan DX63-3 weigh?

The Doosan DX63-3 weighs 6.25 tons.

What are the transport dimensions of the Doosan DX63-3 crawler excavator?

The Doosan DX63-3 has a transport length of 5.67 meters, a transport width of 1.98 meters, and a transport height of 2.13 meters.

What is the track width of the Doosan DX63-3's undercarriage?

The Doosan DX63-3 has a track width of 400 mm.

What are the excavation performance specifications of the Doosan DX63-3?

The Doosan DX63-3 has a dredging depth of 3.815 meters and a maximum horizontal reach of 6.06 meters.

What is the tear-out force of the Doosan DX63-3?

The Doosan DX63-3 has a tear-out force of 43.2 kN.

What are the specifications of the primary work tool bucket on the Doosan DX63-3?

The Doosan DX63-3 has a bucket with a capacity of 0.069 mu00b3, a maximum capacity of 0.18 mu00b3, a minimum capacity of 0.07 mu00b3, and a bucket width of 0.3 meters.

How much is a Doosan DX63-3 Crawler excavator (2019u20132023) worth?

The residual value of the Doosan DX63-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Doosan DX63-3 overview

Doosan DX63-3 features overview

Maximum controllability in every situation

Proportional auxiliary flow means that the excavator's power is matched by smooth, confident manoeuvres. Using sensitive joysticks and clear controls positioned for convenient access, you are able to work safely and confidently with minimum effort. Even the switches have been ergonomically placed on the right and positioned according to the frequency with which they are used. The highest standards of efficiency are just a finger’s reach away. The 5.7” colour LCD panel is located within the operator’s line of sight. The monitor is user-friendly and gives access to machine settings, maintenance data and auxiliary flow control. Any abnormality is clearly displayed on the screen, allowing you to work safely and confidently with an accurate overview of all conditions.


Undercarriage

Undercarriage

Very robust construction throughout. All welded structures designed to limit stresses. High-quality, durable materials. Lateral chassis welded and rigidly attached to undercarriage. Track rollers lubricated for life. Idlers and sprockets fitted with floating seals. Track shoes (option) made of induction-hardened alloy with triple grouser. Heat-treated connecting pins. Hydraulic track adjuster with shock-absorbing tension mechanism.


Drive

Each track is driven by an independent, high-torque axial piston motor through a planetary reduction gearbox. Two levers / foot pedals guarantee smooth travel with counter-rotation on demand.
