DX63-3 Doosan excavator specs & Dimensions (2012 - 2019)

Model rating
8,00 / 10

Doosan DX63-3 is a Crawler Excavator manufactured from 2012 to 2019. It has a weight of 6.25 tons and a track width of 400 mm. The…

Doosan DX63-3 is a Crawler Excavator manufactured from 2012 to 2019. It has a weight of 6.25 tons and a track width of 400 mm. The transport dimensions are 5.67 meters in length, 1.98 meters in width, and 2.55 meters in height. The dredging depth is 4.115 meters, and the maximum horizontal reach is 6.4 meters. The bucket width is 0.724 meters with a capacity of 0.175 cubic meters. Special equipment includes air conditioning and a blade.

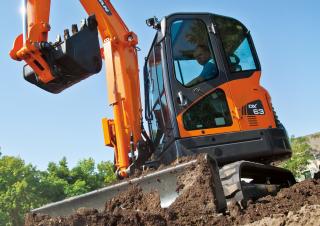

Crawler Excavators Doosan DX63-3
Crawler Excavators Doosan DX63-3
Crawler Excavators Doosan DX63-3
Crawler Excavators Doosan DX63-3

Technical specs - DX63-3 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.25 t
Transport length
5.67 m
Transport width
1.98 m
Transport height
2.55 m
Bucket capacity
0.175 m³
Track width
400 mm
Max. Reach horizontal
6.4 m
Dredging depth
4.115 m
Tear-out force
43.2 kN
Bucket width
0.724 m
Model series
DX
Engine manuf.
Yanmar
Engine type
4TNV94L
Engine power
36.2 kW
Displacement
3.05 l
Revolutions at max torque
1400 rpm
No. of cylinders
4
Cylinder bore x stroke
94x110 mm
Emission level
IIIA

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX63-3 FAQ

When was the Doosan DX63-3 manufactured?

The Doosan DX63-3 was manufactured from 2012 to 2019.

How much does the Doosan DX63-3 weigh?

The Doosan DX63-3 weighs 6.25 tons.

What are the transport dimensions of the Doosan DX63-3 crawler excavator?

The Doosan DX63-3 has a transport length of 5.67 meters, a transport width of 1.98 meters, and a transport height of 2.55 meters.

What is the track width of the Doosan DX63-3's undercarriage?

The Doosan DX63-3 has a track width of 400 mm.

What are the excavation performance specifications of the Doosan DX63-3?

The Doosan DX63-3 has a dredging depth of 4.115 meters and a maximum horizontal reach of 6.4 meters.

What is the tear-out force of the Doosan DX63-3?

The Doosan DX63-3 has a tear-out force of 43.2 kN.

What are the specifications of the primary work tool bucket on the Doosan DX63-3?

The primary work tool bucket of the Doosan DX63-3 has a capacity of 0.175 cubic meters and a width of 0.724 meters.

How much is a Doosan DX63-3 Crawler excavator (2012u20132019) worth?

The residual value of the Doosan DX63-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
