DX62R-3 Doosan excavator specs & Dimensions (2019 - 2023)

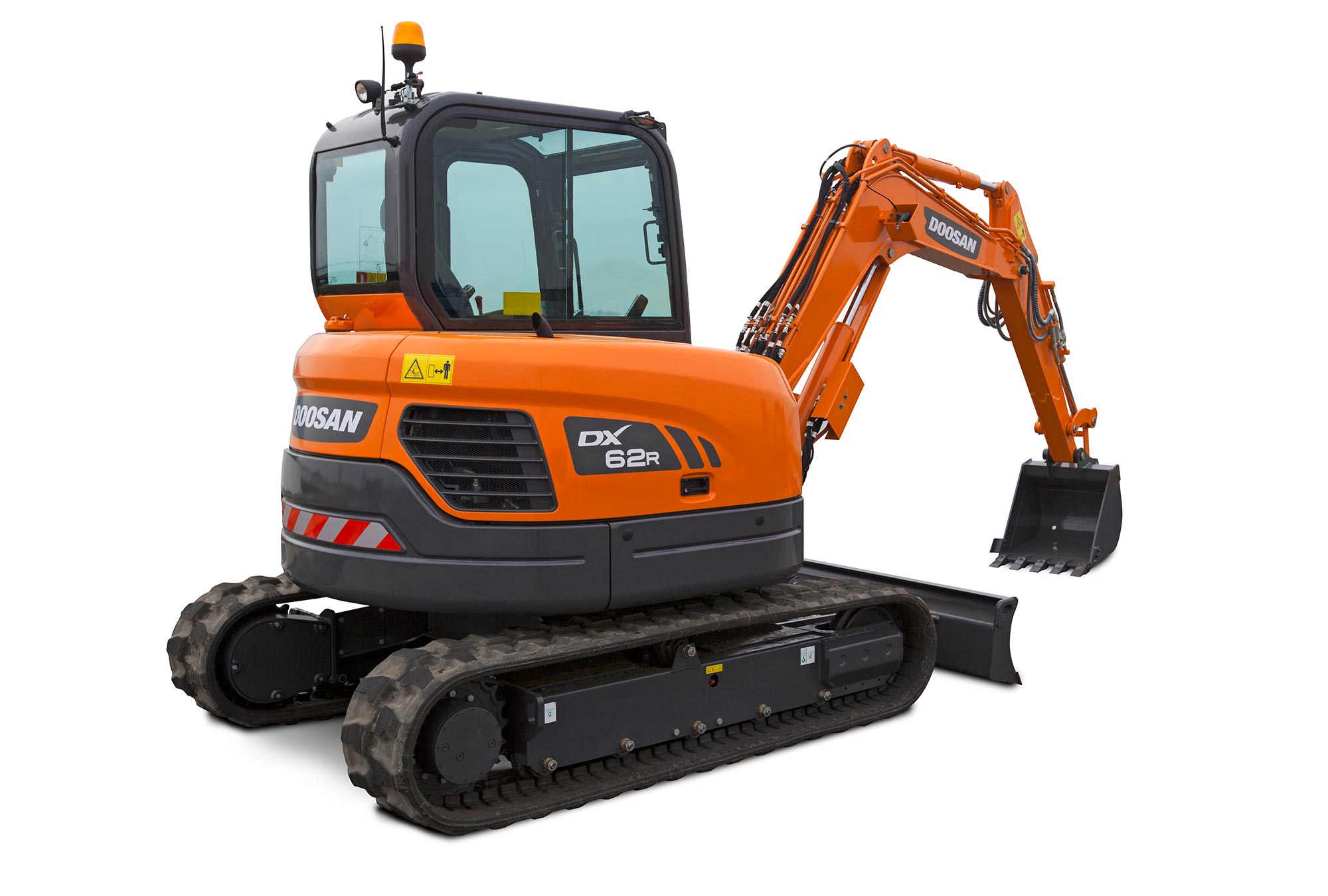

Doosan DX62R-3 is a Crawler Excavator manufactured since 2019, with a weight of 6.25 tons. It features a track width of 400 mm, a …

Doosan DX62R-3 is a Crawler Excavator manufactured since 2019, with a weight of 6.25 tons. It features a track width of 400 mm, a transport length of 5.67 meters, a transport width of 1.98 meters, and a transport height of 2.13 meters. The excavator has a tear-out force of 43.2 kN, a dredging depth of 3.815 meters, and a maximum horizontal reach of 6.23 meters. The bucket width is 0.654 meters, with a bucket capacity ranging from 0.069 m³ to 0.179 m³, and a standard bucket capacity of 0.175 m³. Special equipment includes air conditioning and a blade.

Crawler Excavators Doosan DX62R-3
Crawler Excavators Doosan DX62R-3
Crawler Excavators Doosan DX62R-3
Crawler Excavators Doosan DX62R-3
Crawler Excavators Doosan DX62R-3
Crawler Excavators Doosan DX62R-3

Technical specs - DX62R-3 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.25 t
Transport length
5.67 m
Transport width
1.98 m
Transport height
2.13 m
Bucket capacity
0.175 m³
Bucket capacity min.
0.07 m³
Bucket capacity max.
0.18 m³
Track width
400 mm
Max. Reach horizontal
6.23 m
Dredging depth
3.815 m
Tear-out force
43.2 kN
Bucket width
0.654 m
Engine manuf.
Yanmar
Engine type
4TNV98C
Engine power
44.3 kW
Dimension lxwxh
756.9x556.3x838.2 mm
Displacement
3.319 l
Revolutions at max torque
2100 rpm
Max. torque
241/1400 Nm
No. of cylinders
4
Cylinder bore x stroke
98x110 mm
Emission level
Stage V

More technical details, like: undercarriage, boom, model series are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX62R-3 FAQ

When was the Doosan DX62R-3 manufactured?

The Doosan DX62R-3 was manufactured from 2019 to 2023.

How much does the Doosan DX62R-3 weigh?

The Doosan DX62R-3 weighs 6.25 tons.

What are the transport dimensions of the Doosan DX62R-3 crawler excavator?

The Doosan DX62R-3 has a transport length of 5.67 meters, a transport width of 1.98 meters, and a transport height of 2.13 meters.

What is the track width of the Doosan DX62R-3's undercarriage?

The Doosan DX62R-3 has a track width of 400 mm in its undercarriage.

What are the excavation performance specifications of the Doosan DX62R-3?

The Doosan DX62R-3 has a dredging depth of 3.815 meters and a maximum horizontal reach of 6.23 meters.

What is the tear-out force of the Doosan DX62R-3?

The Doosan DX62R-3 has a tear-out force of 43.2 kN.

What are the specifications of the primary work tool bucket on the Doosan DX62R-3?

The Doosan DX62R-3 has a bucket with a capacity ranging from 0.07 to 0.18 cubic meters, a standard bucket capacity of 0.175 cubic meters, and a bucket width of 0.654 meters.

How much is a Doosan DX62R-3 Crawler excavator (2019u20132023) worth?

The residual value of the Doosan DX62R-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Doosan DX62R-3 overview

Doosan DX62R-3 features overview

Maximum controllability in every situation

Proportional auxiliary flow means that the excavator's power is matched by smooth, confident manoeuvres. Using sensitive joysticks and clear controls positioned for convenient access, you are able to work safely and confidently with minimum effort. Even the switches have been ergonomically placed on the right and positioned according to the frequency with which they are used. The highest standards of efficiency are just a finger’s reach away. The 5.7” colour LCD panel is located within the operator’s line of sight. The monitor is user-friendly and gives access to machine settings, maintenance data and auxiliary flow control. Any abnormality is clearly displayed on the screen, allowing you to work safely and confidently with an accurate overview of all conditions.


Hydraulic and electronic system

Drive

Each track is driven by an independent, high-torque axial piston motor through a planetary reduction gearbox. Two levers and foot pedals guarantee smooth travel with counter-rotation on demand.


Undercarriage

Undercarriage

Very robust construction throughout. All welded structures designed to limit stresses. High-quality, durable materials. Lateral chassis welded and rigidly attached to undercarriage. Track rollers lubricated for life. Idlers and sprockets fitted with floating seals. Track shoes (option) made of induction-hardened alloy with triple grouser. Heat-treated connecting pins. Hydraulic track adjuster with shock-absorbing tension mechanism.
