DX62R-3 Doosan excavator specs & Dimensions (2013 - 2019)

Doosan DX62R-3 is a Crawler Excavator manufactured from 2013 to 2019, with a weight of 6.25 tons. It features a track width of 400…

Doosan DX62R-3 is a Crawler Excavator manufactured from 2013 to 2019, with a weight of 6.25 tons. It features a track width of 400 mm, a transport length of 5.67 meters, a transport width of 1.98 meters, and a transport height of 2.55 meters. The machine has a dredging depth of 4.115 meters and a maximum horizontal reach of 6.4 meters. The bucket width is 0.724 meters, with a bucket capacity of 0.175 cubic meters. Special equipment includes air conditioning and a blade.

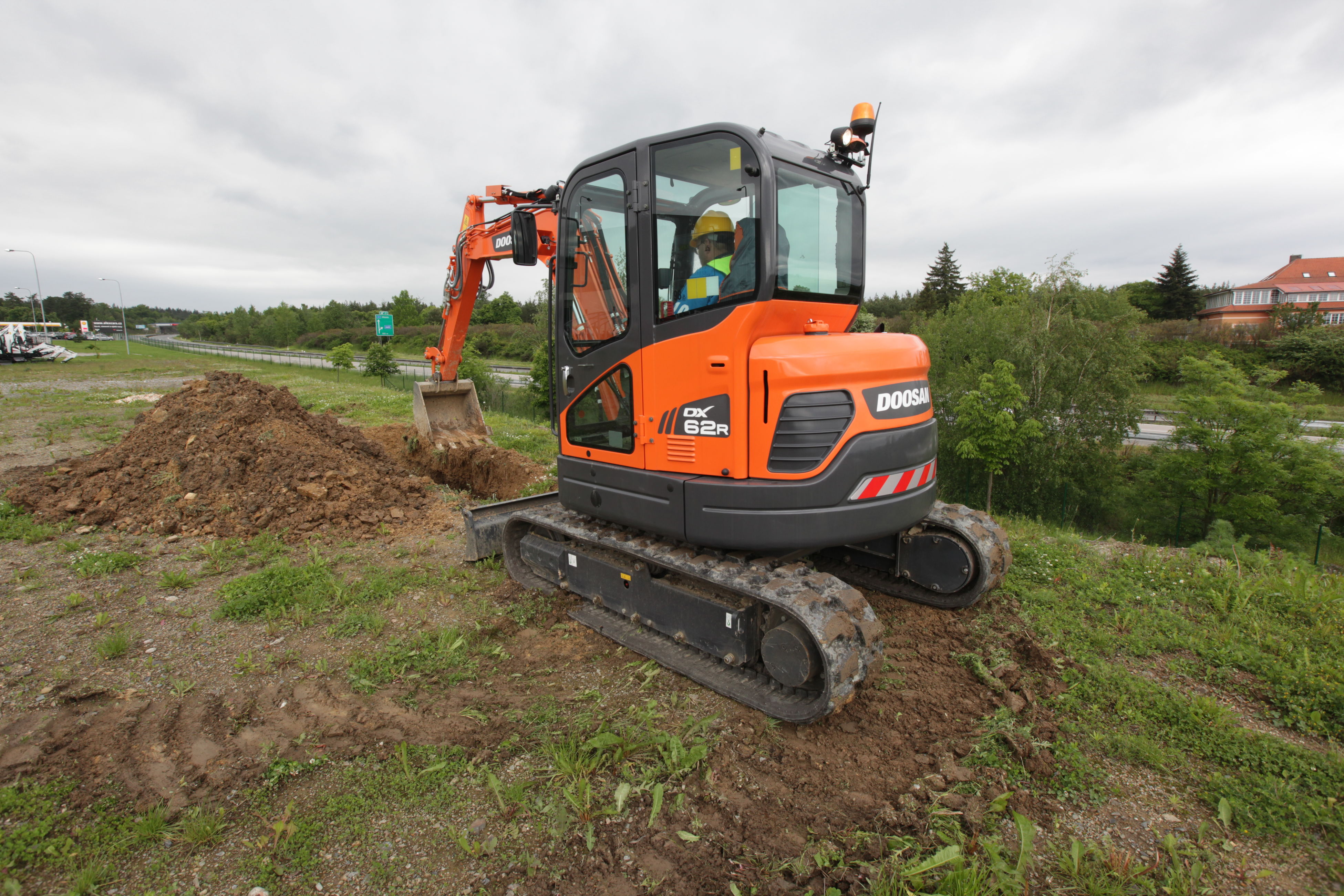

Crawler Excavators Doosan DX62R-3
Crawler Excavators Doosan DX62R-3
Crawler Excavators Doosan DX62R-3
Crawler Excavators Doosan DX62R-3

Technical specs - DX62R-3 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.25 t
Transport length
5.67 m
Transport width
1.98 m
Transport height
2.55 m
Bucket capacity
0.175 m³
Track width
400 mm
Max. Reach horizontal
6.4 m
Dredging depth
4.115 m
Tear-out force
43.2 kN
Bucket width
0.724 m
Model series
DX
Engine manuf.
Yanmar
Engine type
4TNV94L
Engine power
36.2 kW
Displacement
3.05 l
Revolutions at max torque
1400 rpm
No. of cylinders
4
Cylinder bore x stroke
94x110 mm
Emission level
IIIA

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX62R-3 FAQ

When was the Doosan DX62R-3 manufactured?

The Doosan DX62R-3 was manufactured from 2013 to 2019.

How much does the Doosan DX62R-3 weigh?

The Doosan DX62R-3 weighs 6.25 tons.

What are the transport dimensions of the Doosan DX62R-3 crawler excavator?

The Doosan DX62R-3 has a transport length of 5.67 meters, a transport width of 1.98 meters, and a transport height of 2.55 meters.

What is the track width of the Doosan DX62R-3's undercarriage?

The Doosan DX62R-3 has a track width of 400 mm.

What are the excavation performance specifications of the Doosan DX62R-3?

The Doosan DX62R-3 has a dredging depth of 4.115 meters and a maximum horizontal reach of 6.4 meters.

What are the power ratings of the Doosan DX62R-3?

The source data does not provide power rating information for the Doosan DX62R-3.

What are the bucket specifications of the Doosan DX62R-3 crawler excavator?

The Doosan DX62R-3 has a bucket capacity of 0.175 cubic meters and a bucket width of 0.724 meters.

How much is a Doosan DX62R-3 Crawler excavator (2013u20132019) worth?

The residual value of the Doosan DX62R-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Quotation mark

Doosan DX62R-3 user from

Powerful, comfortable, reliable machine

Quotation mark

Doosan DX62R-3 user from

Poor slew power

Doosan DX62R-3 overview

Engine

Maximum controllability in every situation

Proportional auxiliary flow means that the excavator’s power is matched by smooth, confident manoeuvres. Using sensitive joysticks and clear controls positioned for convenient access, you are able to work safely and confidently with minimum effort. Even the switches have been ergonomically placed on the right and positioned according to the frequency with which they are used. The highest standards of efficiency are just a finger’s reach away.


Colour LCD monitor panel

The new 5.7” colour LCD panel is located within the operator’s line of sight. The monitor is user-friendly and gives access to machine settings, maintenance data and auxiliary flow control. Any abnormality is clearly displayed on the screen, allowing you to work safely and confidently with an accurate overview of all conditions. Gauges Engine coolant and hydraulic oil temperatures Engine speed Fuel level Eco symbol: changes colour when operating conditions change (idle, normal or loading) Eco gauge: shows the average fuel efficiency over the last minute of operation Warning symbols (12) Anti-theft function Maintenance schedule Diagnostic ability.


Hydraulic and electronic system

Undercarriage

Very robust construction throughout. All welded structures designed to limit stresses. High-quality, durable materials. Lateral chassis welded and rigidly attached to undercarriage. Track rollers lubricated for life. Idlers and sprockets fitted with floating seals. Track shoes (option) made of induction-hardened alloy with triple grouser. Heat-treated connecting pins. Hydraulic track adjuster with shock-absorbing tension mechanism.


Drive

Each track is driven by an independent, high-torque axial piston motor through a planetary reduction gearbox. Two levers / foot pedals guarantee smooth travel with counter-rotation on demand.


Hydraulic Cylinders

Piston rods and cylinder bodies of high-strength steel. Shock-absorbing mechanism fitted in cylinders for shock-free operation and extended life.
