DX490LC-7 Doosan excavator specs & Dimensions (2021 - 2023)

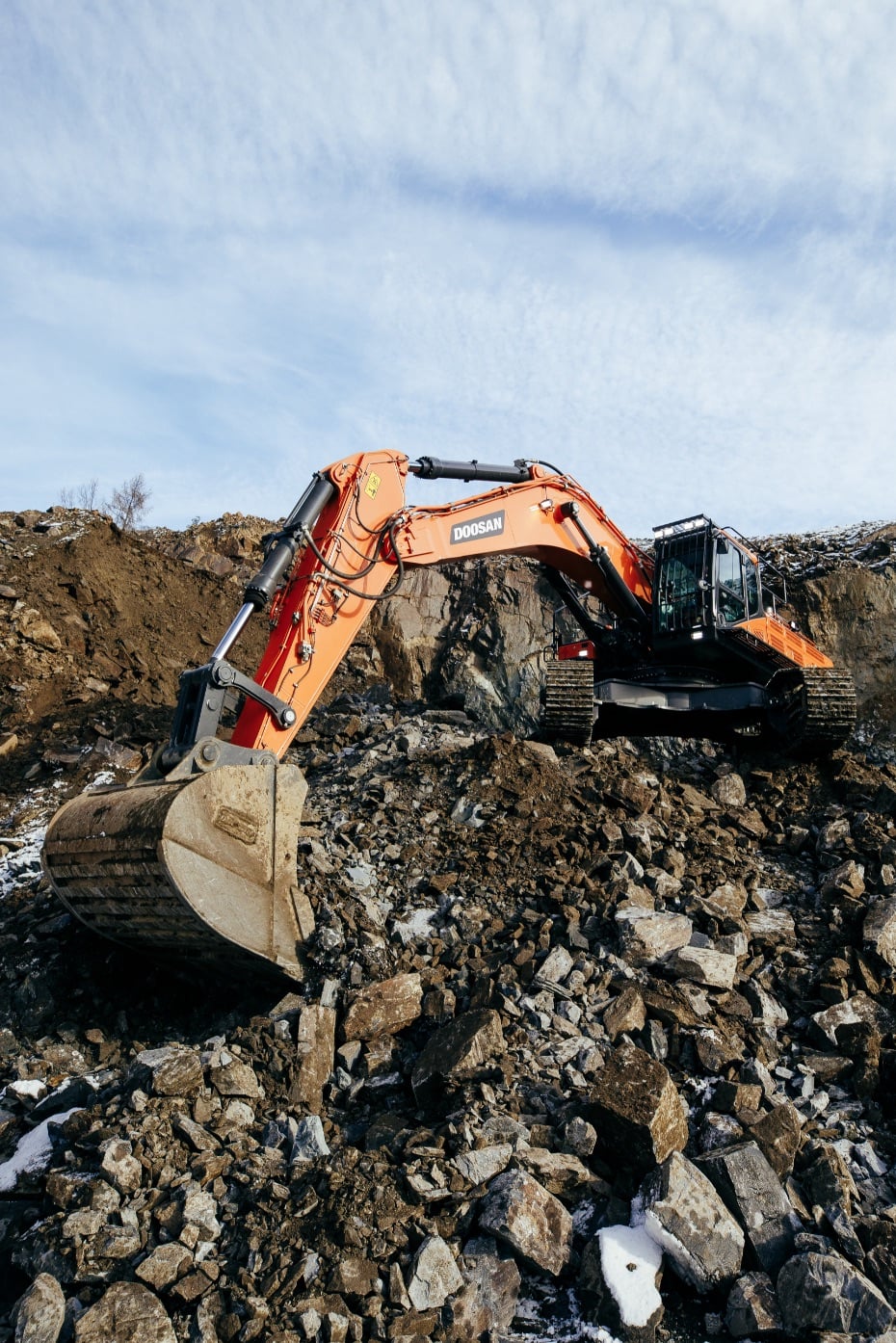

Doosan DX490LC-7 is a Crawler Excavator manufactured since 2021, with a weight of 49.8 t and a track width of 600 mm. Its transpor…

Doosan DX490LC-7 is a Crawler Excavator manufactured since 2021, with a weight of 49.8 t and a track width of 600 mm. Its transport dimensions are 12.33 m in length, 3.34 m in width, and 3.8 m in height. The machine has a dredging depth of 7.34 m and a maximum horizontal reach of 11.72 m. The bucket width is 1.837 m, with a capacity ranging from 1.8 m³ to 3.28 m³, and a standard capacity of 2.39 m³. Special equipment includes air conditioning, a diesel particulate filter, and an overload alert system.

Crawler Excavators Doosan DX490LC-7
Crawler Excavators Doosan DX490LC-7
Crawler Excavators Doosan DX490LC-7
Crawler Excavators Doosan DX490LC-7
Crawler Excavators Doosan DX490LC-7
Crawler Excavators Doosan DX490LC-7
Crawler Excavators Doosan DX490LC-7
Crawler Excavators Doosan DX490LC-7

Technical specs - DX490LC-7 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
49.8 t
Transport length
12.33 m
Transport width
3.34 m
Transport height
3.8 m
Bucket capacity
2.39 m³
Bucket capacity min.
1.8 m³
Bucket capacity max.
3.28 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.72 m
Dredging depth
7.34 m
Bucket width
1.837 m
Model series
DX
Engine manuf.
Scania
Engine type
DC13
Engine power
294 kW
Dimension lxwxh
1398x965x1119 mm
Displacement
12.7 l
Revolutions at max torque
1800 rpm
Max. torque
1854 Nm
No. of cylinders
6
Cylinder bore x stroke
130x160 mm
Emission level
Stage V

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX490LC-7 FAQ

When was the Doosan DX490LC-7 manufactured?

The Doosan DX490LC-7 was manufactured from 2021 to 2023.

How much does the Doosan DX490LC-7 weigh?

The Doosan DX490LC-7 weighs 49.8 tons.

What are the transport dimensions of the Doosan DX490LC-7?

The Doosan DX490LC-7 has a transport length of 12.33 meters, a transport width of 3.34 meters, and a transport height of 3.8 meters.

What are the undercarriage specifications of the Doosan DX490LC-7?

The Doosan DX490LC-7 has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Doosan DX490LC-7?

The Doosan DX490LC-7 has a dredging depth of 7.34 meters, a maximum horizontal reach of 11.72 meters, and is equipped with a monobloc boom.

What are the specifications of the primary work tool bucket on the Doosan DX490LC-7?

The Doosan DX490LC-7 has a bucket with a capacity of 2.39 mu00b3, a maximum capacity of 3.28 mu00b3, a minimum capacity of 1.8 mu00b3, and a width of 1.837 meters.
