DX350LC-5 Doosan excavator specs & Dimensions (2016 - 2017)

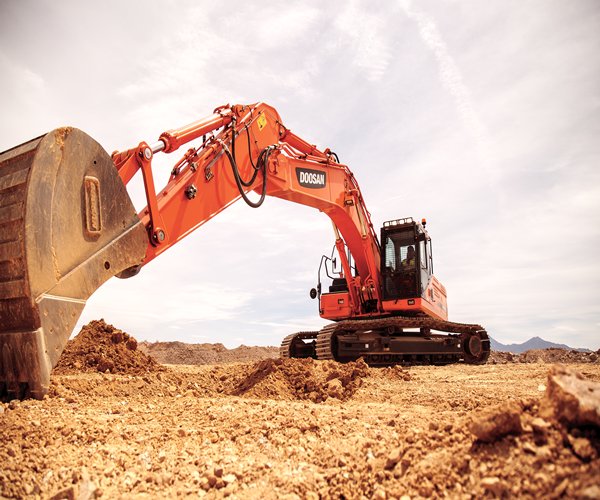

Doosan DX350LC-5 is a Crawler Excavator manufactured from 2016 to 2017. It has a weight of 36.58 tons and a track width of 800 mm.…

Doosan DX350LC-5 is a Crawler Excavator manufactured from 2016 to 2017. It has a weight of 36.58 tons and a track width of 800 mm. The transport dimensions are 11.31 meters in length, 3.48 meters in width, and 3.2 meters in height. The excavator features a tear-out force of 213 kN, a dredging depth of 7.3 meters, and a maximum horizontal reach of 11.24 meters. The bucket width is 0.81 meters with a capacity of 0.81 cubic meters.

Crawler Excavators Doosan DX350LC-5
Crawler Excavators Doosan DX350LC-5
Crawler Excavators Doosan DX350LC-5
Crawler Excavators Doosan DX350LC-5
Crawler Excavators Doosan DX350LC-5
Crawler Excavators Doosan DX350LC-5
Crawler Excavators Doosan DX350LC-5
Crawler Excavators Doosan DX350LC-5

Technical specs - DX350LC-5 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.58 t
Transport length
11.31 m
Transport width
3.48 m
Transport height
3.2 m
Bucket capacity
0.81 m³
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
11.24 m
Dredging depth
7.3 m
Tear-out force
213 kN
Bucket width
0.81 m
Model series
DX
Engine manuf.
Scania
Engine type
DC 09
Engine power
198 kW
Displacement
9.3 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX350LC-5 FAQ

When was the Doosan DX350LC-5 manufactured?

The Doosan DX350LC-5 was manufactured from 2016 to 2017.

How much does the Doosan DX350LC-5 weigh?

The Doosan DX350LC-5 weighs 36.58 tons.

What are the transport dimensions of the Doosan DX350LC-5 crawler excavator?

The Doosan DX350LC-5 has a transport length of 11.31 meters, a transport width of 3.48 meters, and a transport height of 3.2 meters.

What are the undercarriage specifications of the Doosan DX350LC-5?

The Doosan DX350LC-5 has a long undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the Doosan DX350LC-5?

The Doosan DX350LC-5 has a dredging depth of 7.3 meters, a maximum horizontal reach of 11.24 meters, and features a Monobloc boom.

What are the power ratings of the Doosan DX350LC-5?

The available data does not provide power ratings for the Doosan DX350LC-5.

What are the specifications of the primary work tool bucket on the Doosan DX350LC-5?

The primary work tool bucket of the Doosan DX350LC-5 has a capacity of 0.81 cubic meters and a width of 0.81 meters.

How much is a Doosan DX350LC-5 Crawler excavator (2016u20132017) worth?

The residual value of the Doosan DX350LC-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
