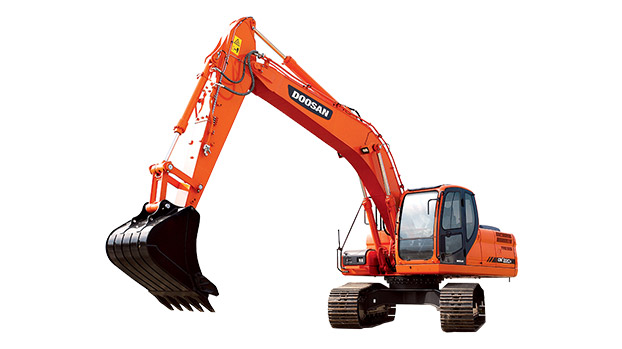

DX220A-2 Doosan excavator specs & Dimensions (2022 - 2023)

Doosan DX220A-2 is a Crawler Excavator manufactured since 2022, with a weight of 20.8 tons. It features a track width of 600 mm, a…

Doosan DX220A-2 is a Crawler Excavator manufactured since 2022, with a weight of 20.8 tons. It features a track width of 600 mm, a transport length of 9.505 meters, a transport width of 2.99 meters, and a transport height of 3.005 meters. The machine has a dredging depth of 6.595 meters and a maximum horizontal reach of 9.7 meters. The bucket capacity ranges from 0.92 to 1.17 cubic meters. Special equipment includes air conditioning and an overload alert system.

Crawler Excavators Doosan DX220A-2

Technical specs - DX220A-2 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.8 t
Transport length
9.505 m
Transport width
2.99 m
Transport height
3.005 m
Bucket capacity min.
0.92 m³
Bucket capacity max.
1.17 m³
Track width
600 mm
Max. Reach horizontal
9.7 m
Dredging depth
6.595 m
Model series
DX
Engine manuf.
Doosan
Engine type
DB58TIS
Engine power
113 kW
Displacement
5.785 l
No. of cylinders
6
Cylinder bore x stroke
102x118 mm
Emission level
Tier 2

More technical details, like: bucket capacity, undercarriage, boom, tear-out force, bucket width, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Doosan DX220A-2 FAQ

When was the Doosan DX220A-2 manufactured?

The Doosan DX220A-2 was manufactured from 2022 to 2023.

How much does the Doosan DX220A-2 weigh?

The Doosan DX220A-2 weighs 20.8 tons.

What are the transport dimensions of the Doosan DX220A-2 crawler excavator?

The Doosan DX220A-2 has a transport length of 9.51 meters, a transport width of 2.99 meters, and a transport height of 3.01 meters.

What is the track width of the Doosan DX220A-2's undercarriage?

The Doosan DX220A-2 has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the Doosan DX220A-2?

The Doosan DX220A-2 has a dredging depth of 6.595 meters and a maximum horizontal reach of 9.7 meters.

What are the bucket capacity specifications of the Doosan DX220A-2 excavator?

The Doosan DX220A-2 has a bucket capacity ranging from 0.92 to 1.17 cubic meters.

How much is a Doosan DX220A-2 Crawler excavator (2022u20132023) worth?

The residual value of the Doosan DX220A-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
