DX220A Doosan excavator specs & Dimensions (2019 - 2022)

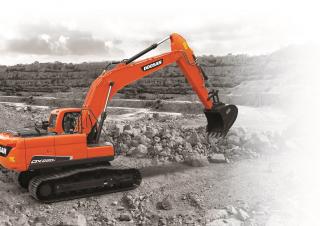

Doosan DX220A is a Crawler Excavator manufactured from 2019 to 2022. It has a weight of 20 tons and a track width of 600 mm. The t…

Doosan DX220A is a Crawler Excavator manufactured from 2019 to 2022. It has a weight of 20 tons and a track width of 600 mm. The transport dimensions are 9 meters in length, 2 meters in width, and 3 meters in height. The dredging depth is 6 meters, and the maximum horizontal reach is 9 meters. The bucket width is 1 meter, and it is equipped with air conditioning.

Crawler Excavators Doosan DX220A
Crawler Excavators Doosan DX220A
Crawler Excavators Doosan DX220A
Crawler Excavators Doosan DX220A

Technical specs - DX220A Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.6 t
Transport length
9.49 m
Transport width
2.8 m
Transport height
3 m
Bucket capacity
0.92 m³
Track width
600 mm
Max. Reach horizontal
9.73 m
Dredging depth
6.62 m
Bucket width
1.24 m
Model series
DX
Engine manuf.
Doosan
Engine type
DB58TIS
Engine power
110 kW
Displacement
5.79 l
Revolutions at max torque
1400 rpm
Max. torque
603 Nm
No. of cylinders
6
Cylinder bore x stroke
102 x 118 mm
Emission level
T2

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX220A FAQ

When was the Doosan DX220A manufactured?

The Doosan DX220A was manufactured from 2019 to 2022.

How much does the Doosan DX220A weigh?

The Doosan DX220A weighs 20.6 tons.

What are the transport dimensions of the Doosan DX220A crawler excavator?

The Doosan DX220A has a transport length of 9.49 meters, a width of 2.8 meters, and a height of 3 meters.

What is the track width of the Doosan DX220A's undercarriage?

The Doosan DX220A has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the Doosan DX220A?

The Doosan DX220A has a dredging depth of 6.62 meters and a maximum horizontal reach of 9.73 meters.

What are the specifications of the primary work tool bucket on the Doosan DX220A?

The Doosan DX220A has a bucket with a capacity of 0.92 cubic meters and a width of 1.24 meters.

How much is a Doosan DX220A Crawler excavator (2019u20132022) worth?

The residual value of the Doosan DX220A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
