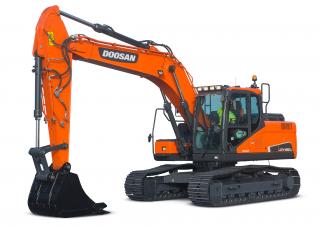

DX180LC Doosan excavator specs & Dimensions (2019 - 2023)

Doosan DX180LC is a crawler excavator manufactured since 2019. It has a weight of 17 tons and a track width of 600 mm. The transpo…

Doosan DX180LC is a crawler excavator manufactured since 2019. It has a weight of 17 tons and a track width of 600 mm. The transport dimensions are 8 meters in length, 2 meters in width, and 2 meters in height. The machine features a tear-out force of 128 kN, a dredging depth of 6 meters, and a maximum horizontal reach of 8 meters. The bucket width is 1 meter, and it comes equipped with air conditioning.

Crawler Excavators Doosan DX180LC

Technical specs - DX180LC Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.66 t
Transport length
8.7 m
Transport width
2.8 m
Transport height
2.88 m
Bucket capacity
0.7 m³
Track width
600 mm
Max. Reach horizontal
8.98 m
Dredging depth
6.12 m
Tear-out force
128 kN
Bucket width
1.1 m
Model series
DX
Engine manuf.
Doosan
Engine type
DL06
Engine power
88 kW
Displacement
5.9 l
Revolutions at max torque
1400 rpm
Max. torque
451 Nm
No. of cylinders
6
Cylinder bore x stroke
100 x 125 mm
Emission level
T3

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX180LC FAQ

When was the Doosan DX180LC manufactured?

The Doosan DX180LC was manufactured from 2019 to 2023.

How much does the Doosan DX180LC weigh?

The Doosan DX180LC weighs 17.66 tons.

What are the transport dimensions of the Doosan DX180LC crawler excavator?

The Doosan DX180LC crawler excavator has a transport length of 8.7 meters, a transport width of 2.8 meters, and a transport height of 2.88 meters.

What is the track width of the Doosan DX180LC crawler excavator?

The Doosan DX180LC crawler excavator has a track width of 600 mm.

What is the excavation performance of the Doosan DX180LC?

The Doosan DX180LC has a dredging depth of 6.12 meters and a maximum horizontal reach of 8.98 meters.

What power ratings are available for the Doosan DX180LC?

The source data does not provide any power ratings for the Doosan DX180LC.

What are the specifications of the primary work tool bucket on the Doosan DX180LC?

The Doosan DX180LC has a bucket with a capacity of 0.7 cubic meters and a width of 1.1 meters.
