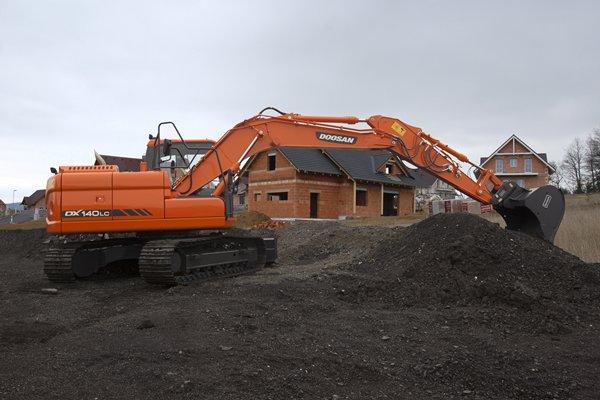

DX140LC-3 Doosan excavator specs & Dimensions (2013 - 2017)

Doosan DX140LC-3 is a crawler excavator manufactured from 2013 to 2017. It has a weight of 14.4 t and a track width of 600 mm. The…

Doosan DX140LC-3 is a crawler excavator manufactured from 2013 to 2017. It has a weight of 14.4 t and a track width of 600 mm. The transport dimensions are 7.7 m in length, 2.6 m in width, and 2.83 m in height. The machine features a tear-out force of 76 kN and a dredging depth of 6.135 m. Special equipment includes air conditioning and an overload alert system.

DX140LC-3

Years of manufacture: 2013—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DX140LC-3 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14.4 t

Transport length: 7.7 m

Transport width: 2.6 m

Transport height: 2.83 m

Bucket capacity: 0.5 m³

Undercarriage: LC

Track width: 600 mm

Boom: MB/VA

Max. Reach horizontal: 6.15 m

Dredging depth: 6.135 m

Tear-out force: 76 kN

Model series: DX

Engine manuf.: Doosan

Engine type: KL 06 K

Engine power: 82 kW

Displacement: 5.89 l

Revolutions at max torque: 1850 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Track adjustment: No
Blade: No
Cabin adjustment: No
Overload alert: Yes
Material Handling Excavator: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Doosan DX140LC-3 FAQ

When was the Doosan DX140LC-3 manufactured?

The Doosan DX140LC-3 was manufactured from 2013 to 2017.

How much does the Doosan DX140LC-3 weigh?

The Doosan DX140LC-3 weighs 14.4 tons.

What are the transport dimensions of the Doosan DX140LC-3?

The Doosan DX140LC-3 has a transport length of 7.7 meters, a transport width of 2.6 meters, and a transport height of 2.83 meters.

What are the undercarriage specifications of the Doosan DX140LC-3?

The Doosan DX140LC-3 has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Doosan DX140LC-3?

The Doosan DX140LC-3 has a dredging depth of 6.135 meters, a maximum horizontal reach of 6.15 meters, and features a Monobloc boom, Adjustable boom.

What is the tear-out force of the Doosan DX140LC-3?

The Doosan DX140LC-3 has a tear-out force of 76 kN.

What is the bucket capacity of the Doosan DX140LC-3?

The Doosan DX140LC-3 has a bucket capacity of 0.5 cubic meters.

How much is a Doosan DX140LC-3 Crawler excavator (2013u20132017) worth?

The residual value of the Doosan DX140LC-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
