DX140AF Doosan excavator specs & Dimensions (2019 - 2023)

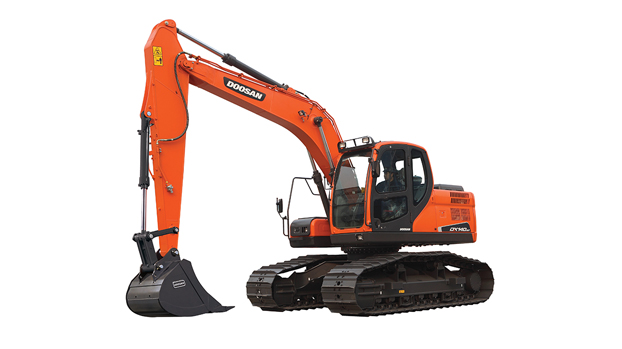

Doosan DX140AF is a Crawler Excavator manufactured since 2019. It has a weight of 16 tons and a track width of 800 mm. The transpo…

Doosan DX140AF is a Crawler Excavator manufactured since 2019. It has a weight of 16 tons and a track width of 800 mm. The transport dimensions are 7 meters in length, 3 meters in width, and 3 meters in height. The excavator features a tear-out force of 90 kN, a dredging depth of 5 meters, and a maximum horizontal reach of 8 meters.

Crawler Excavators Doosan DX140AF

Technical specs - DX140AF Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.9 t
Transport length
7.7 m
Transport width
3.16 m
Transport height
3.24 m
Bucket capacity
0.51 m³
Track width
800 mm
Max. Reach horizontal
8.46 m
Dredging depth
5.81 m
Tear-out force
90 kN
Bucket width
0.99 m
Model series
DX
Engine manuf.
Doosan
Engine type
DB58TIS
Engine power
74 kW
Displacement
5.79 l
Revolutions at max torque
1400 rpm
Max. torque
412 Nm
No. of cylinders
6
Cylinder bore x stroke
100 x 125 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX140AF FAQ

When was the Doosan DX140AF manufactured?

The Doosan DX140AF was manufactured from 2019 to 2023.

How much does the Doosan DX140AF weigh?

The Doosan DX140AF weighs 16.9 tons.

What are the transport dimensions of the Doosan DX140AF crawler excavator?

The Doosan DX140AF has a transport length of 7.7 meters, a transport width of 3.16 meters, and a transport height of 3.24 meters.

What is the track width of the Doosan DX140AF's undercarriage?

The Doosan DX140AF has a track width of 800 mm.

What are the excavation performance specifications of the Doosan DX140AF?

The Doosan DX140AF has a dredging depth of 5.81 meters and a maximum horizontal reach of 8.46 meters.

What is the power rating of the Doosan DX140AF?

The power rating of the Doosan DX140AF is not provided in the available data.

What are the specifications of the primary work tool bucket on the Doosan DX140AF?

The primary work tool bucket of the Doosan DX140AF has a capacity of 0.51 cubic meters and a width of 0.99 meters.
