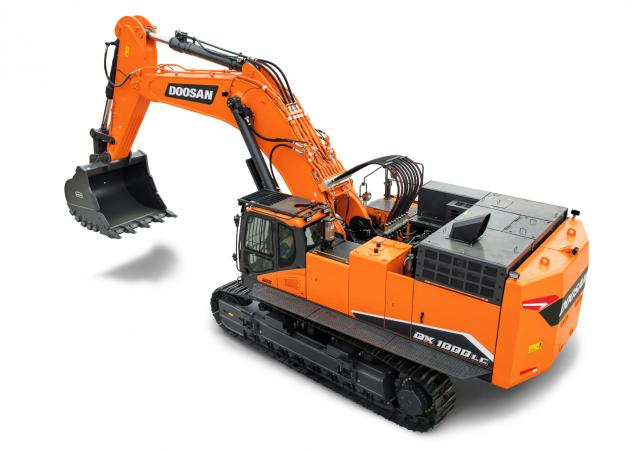

DX1000LC-7 Doosan excavator specs & Dimensions (2021 - 2023)

Doosan DX1000LC-7 is a Crawler Excavator manufactured since 2022. It has a weight of 99.5 tons and a track width of 900 mm. The tr…

Doosan DX1000LC-7 is a Crawler Excavator manufactured since 2022. It has a weight of 99.5 tons and a track width of 900 mm. The transport dimensions are 14.55 meters in length, 4.492 meters in width, and 5.55 meters in height. The dredging depth is 8.795 meters, with a maximum horizontal reach of 14.275 meters. The bucket width is 2.32 meters, with a capacity ranging from 5.4 to 6.8 cubic meters. Special equipment includes air conditioning, cabin adjustment, a diesel particulate filter, overload alert, and track adjustment.

Crawler Excavators Doosan DX1000LC-7

Technical specs - DX1000LC-7 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
99.5 t
Transport length
14.55 m
Transport width
4.49 m
Transport height
5.55 m
Bucket capacity min.
5.4 m³
Bucket capacity max.
6.8 m³
Track width
900 mm
Max. Reach horizontal
14.275 m
Dredging depth
8.795 m
Bucket width
2.32 m
Model series
DX
Engine manuf.
Perkins
Engine type
2806J
Engine power
469 kW
Dimension lxwxh
1545x1141x1334 mm
Displacement
18.1 l
Revolutions at max torque
2000 rpm
Max. torque
2952 Nm
No. of cylinders
6
Cylinder bore x stroke
145 x 183 mm
Emission level
Stage V

More technical details, like: bucket capacity, undercarriage, boom, tear-out force are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX1000LC-7 FAQ

When was the Doosan DX1000LC-7 manufactured?

The Doosan DX1000LC-7 was manufactured from 2021 to 2023.

How much does the Doosan DX1000LC-7 weigh?

The Doosan DX1000LC-7 weighs 99.5 tons.

What are the transport dimensions of the Doosan DX1000LC-7 crawler excavator?

The Doosan DX1000LC-7 has a transport length of 14.55 meters, a transport width of 4.49 meters, and a transport height of 5.55 meters.

What is the track width of the Doosan DX1000LC-7's undercarriage?

The Doosan DX1000LC-7 has a track width of 900 mm.

What are the excavation performance specifications of the Doosan DX1000LC-7?

The Doosan DX1000LC-7 has a dredging depth of 8.795 meters and a maximum horizontal reach of 14.275 meters.

What are the bucket specifications of the Doosan DX1000LC-7 crawler excavator?

The Doosan DX1000LC-7 has a bucket with a maximum capacity of 6.8 cubic meters, a minimum capacity of 5.4 cubic meters, and a width of 2.32 meters.

How much is a Doosan DX1000LC-7 Crawler excavator (2021u20132023) worth?

The residual value of the Doosan DX1000LC-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
