DX89R-7 Develon excavator specs & Dimensions (2023 - 2026)

Weight: 9.537t – Transport length: 6.45m – Transport width: 2.25m – Transport height: 2.657m – Bucket capacity: 0.28m³ – Bucket ca…

Weight: 9.537t – Transport length: 6.45m – Transport width: 2.25m – Transport height: 2.657m – Bucket capacity: 0.28m³ – Bucket capacity min.: 0.11m³

Check out detailed specifications, information and technical data for Develon DX89R-7 excavator manufactured between 2023 - 2026. Get more in-depth insight with Develon DX89R-7 digger specifications. See information, like: Weight: 9.537t – Transport length: 6.45m – Transport width: 2.25m – Transport height: 2.657m – Bucket capacity: 0.28m³ – Bucket capacity min.: 0.11m³ and more.

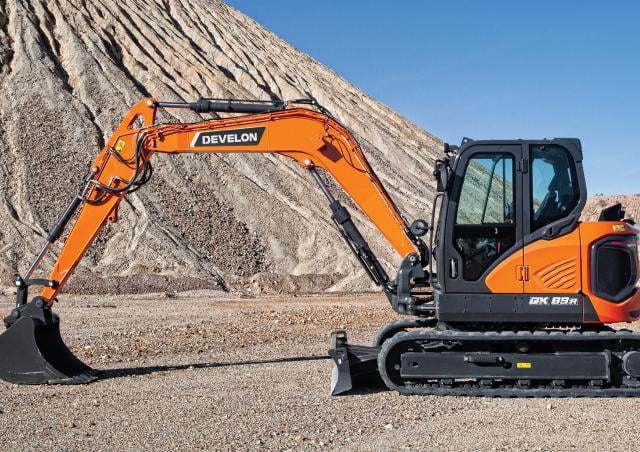

Crawler Excavators Develon DX89R-7

Visit Develon live at

Technical specs - DX89R-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.537 t
Transport length
6.45 m
Transport width
2.25 m
Transport height
2.657 m
Bucket capacity
0.28 m³
Bucket capacity min.
0.11 m³
Bucket capacity max.
0.67 m³
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.85 m
Dredging depth
4.11 m
Model series
DX
Engine manuf.
Develon
Engine type
D24
Engine power
48.5 kW
Displacement
2.4 l
Revolutions at max torque
1600 rpm
Max. torque
382.5 Nm
No. of cylinders
4
Cylinder bore x stroke
90x94 mm

More technical details, like: undercarriage, tear-out force, bucket width, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No
