DX63-3 Develon excavator specs & Dimensions (2023 - 2026)

Weight: 6.25t – Transport length: 5.685m – Transport width: 1.98m – Transport height: 2.55m – Bucket capacity: 0.069m³ – Bucket ca…

Weight: 6.25t – Transport length: 5.685m – Transport width: 1.98m – Transport height: 2.55m – Bucket capacity: 0.069m³ – Bucket capacity min.: 0.07m³

Check out detailed specifications, information and technical data for Develon DX63-3 excavator manufactured between 2023 - 2026. Get more in-depth insight with Develon DX63-3 digger specifications. See information, like: Weight: 6.25t – Transport length: 5.685m – Transport width: 1.98m – Transport height: 2.55m – Bucket capacity: 0.069m³ – Bucket capacity min.: 0.07m³ and more.

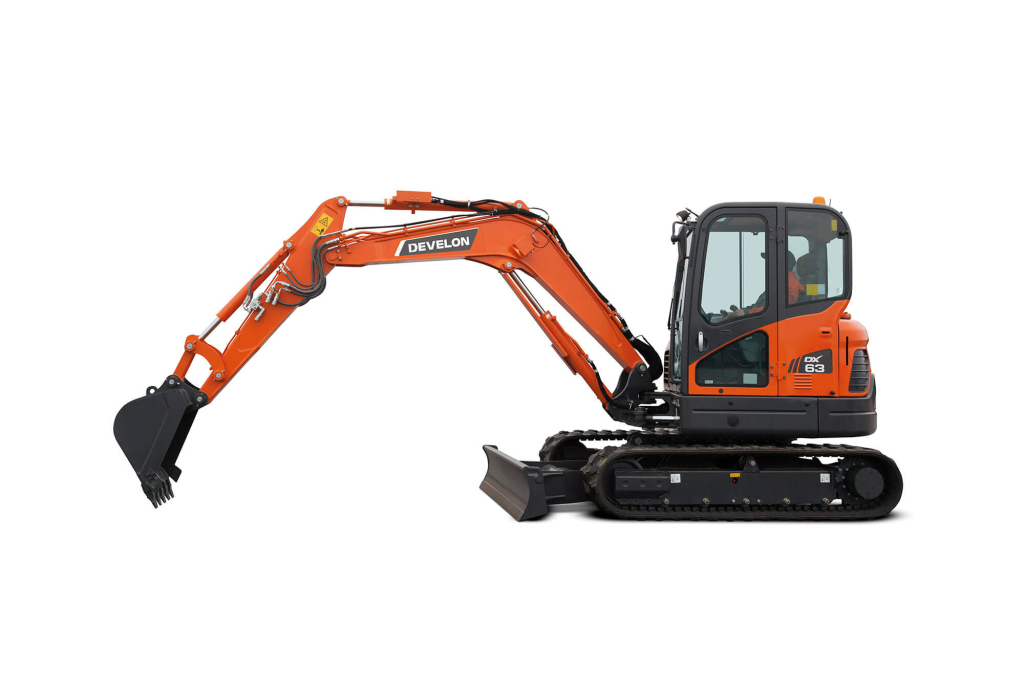

Crawler Excavators Develon DX63-3

Technical specs - DX63-3 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.25 t
Transport length
5.685 m
Transport width
1.98 m
Transport height
2.55 m
Bucket capacity
0.069 m³
Bucket capacity min.
0.07 m³
Bucket capacity max.
0.21 m³
Track width
400 mm
Max. Reach horizontal
6.06 m
Dredging depth
3.815 m
Tear-out force
43.2 kN
Bucket width
0.362 m
Model series
DX
Engine manuf.
Yanmar
Engine type
4TNV98
Engine power
44.3 kW
Dimension lxwxh
756.9x556.3x838.2 mm
Displacement
3.319 l
Max. torque
207/1400 Nm
No. of cylinders
4
Cylinder bore x stroke
98x110 mm
Emission level
Stage V

More technical details, like: undercarriage, boom, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Develon DX63-3 FAQ

When was the Develon DX63-3 manufactured?

The Develon DX63-3 was manufactured from 2023 to 2024.

How much does the Develon DX63-3 mini excavator weigh?

The Develon DX63-3 mini excavator weighs 6.25 tons.

What are the transport dimensions of the Develon DX63-3 mini excavator?

The Develon DX63-3 has a transport length of 5.685 meters, a transport width of 1.98 meters, and a transport height of 2.55 meters.

What is the track width of the Develon DX63-3 mini excavator?

The Develon DX63-3 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Develon DX63-3 mini excavator?

The Develon DX63-3 mini excavator has a dredging depth of 3.815 meters and a maximum horizontal reach of 6.06 meters.

What is the tear-out force of the Develon DX63-3 mini excavator?

The Develon DX63-3 mini excavator has a tear-out force of 43.2 kN.

What are the bucket specifications of the Develon DX63-3 mini excavator?

The Develon DX63-3 has a bucket capacity of 0.069 mu00b3, with a maximum capacity of 0.21 mu00b3 and a minimum capacity of 0.07 mu00b3, and a bucket width of 0.362 meters.

What operator safety and support features does the Develon DX63-3 have?

The Develon DX63-3 is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Develon DX63-3 Mini excavator (2023u20132024) worth?

The residual value of the Develon DX63-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
