DX170LC-5 Develon excavator specs & Dimensions (2023 - 2026)

Weight: 17.407t – Transport length: 8.25m – Transport width: 2.59m – Transport height: 3.06m – Bucket capacity: 0.7m³ – Bucket cap…

Weight: 17.407t – Transport length: 8.25m – Transport width: 2.59m – Transport height: 3.06m – Bucket capacity: 0.7m³ – Bucket capacity min.: 0.38m³

Check out detailed specifications, information and technical data for Develon DX170LC-5 excavator manufactured between 2023 - 2026. Get more in-depth insight with Develon DX170LC-5 digger specifications. See information, like: Weight: 17.407t – Transport length: 8.25m – Transport width: 2.59m – Transport height: 3.06m – Bucket capacity: 0.7m³ – Bucket capacity min.: 0.38m³ and more.

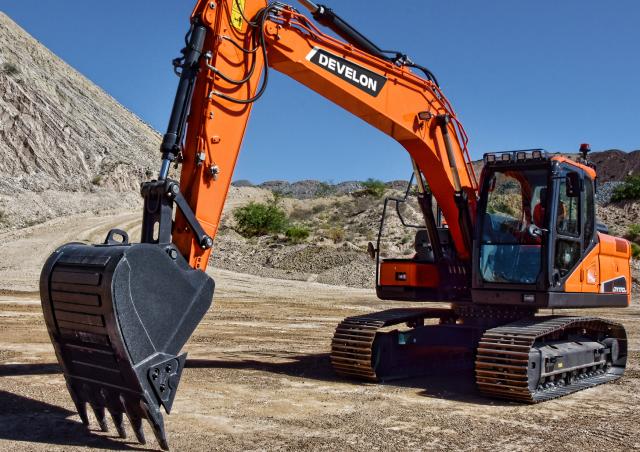

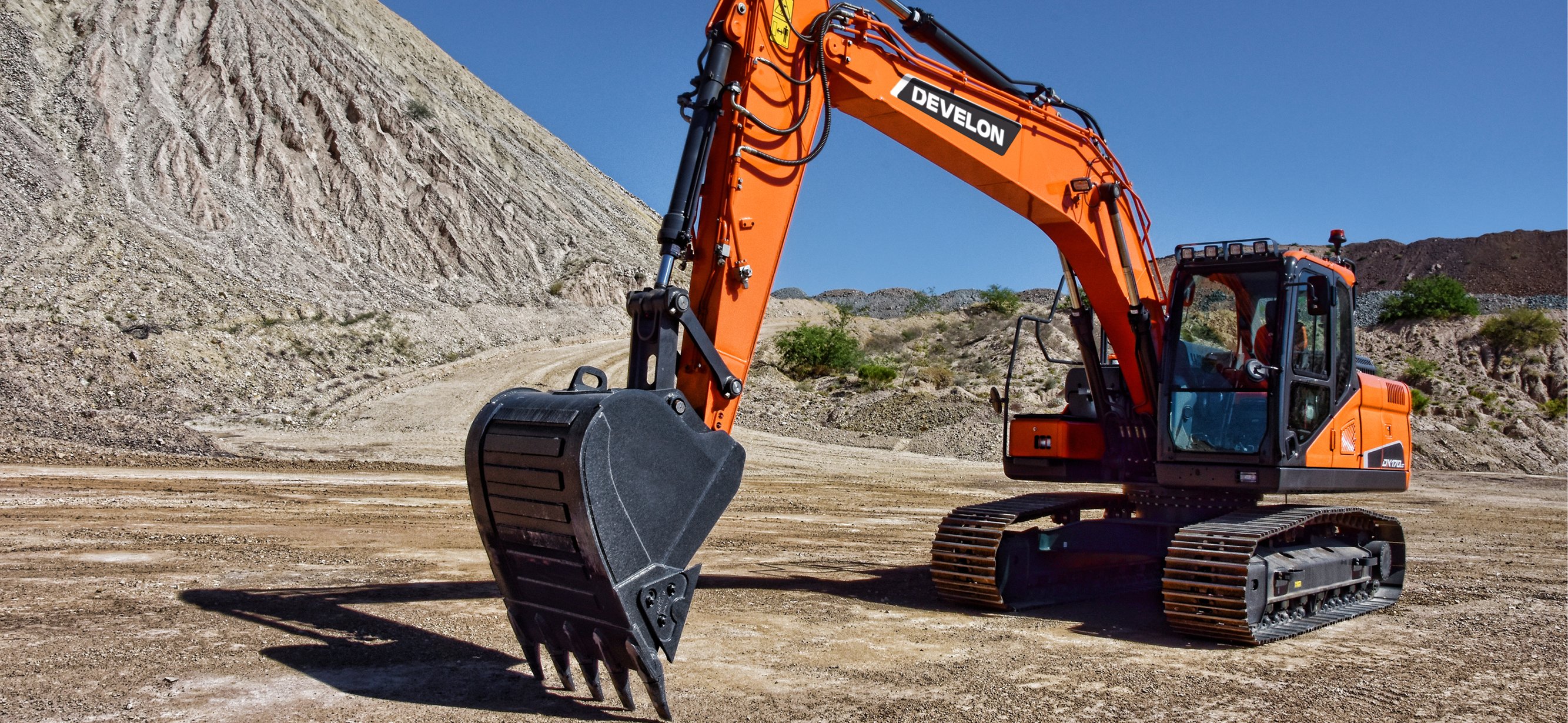

Crawler Excavators Develon DX170LC-5

Visit Develon live at

Technical specs - DX170LC-5 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.407 t
Transport length
8.25 m
Transport width
2.59 m
Transport height
3.06 m
Bucket capacity
0.7 m³
Bucket capacity min.
0.38 m³
Bucket capacity max.
0.93 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.79 m
Dredging depth
6.085 m
Model series
DX
Engine manuf.
Perkins
Engine type
1204F
Engine power
97.9 kW
Displacement
4.4 l
Revolutions at max torque
1400 rpm
Max. torque
530 Nm
No. of cylinders
4
Cylinder bore x stroke
105x127 mm
Emission level
Tier 4

More technical details, like: tear-out force, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)
