DX1000LC-7 Develon excavator specs & Dimensions (2023 - 2026)

Weight: 99.5t – Transport length: 14.55m – Transport width: 4.492m – Transport height: 5.55m – Bucket capacity: 5.4m³ – Bucket cap…

Weight: 99.5t – Transport length: 14.55m – Transport width: 4.492m – Transport height: 5.55m – Bucket capacity: 5.4m³ – Bucket capacity min.: 5.4m³

Check out detailed specifications, information and technical data for Develon DX1000LC-7 excavator manufactured between 2023 - 2026. Get more in-depth insight with Develon DX1000LC-7 digger specifications. See information, like: Weight: 99.5t – Transport length: 14.55m – Transport width: 4.492m – Transport height: 5.55m – Bucket capacity: 5.4m³ – Bucket capacity min.: 5.4m³ and more.

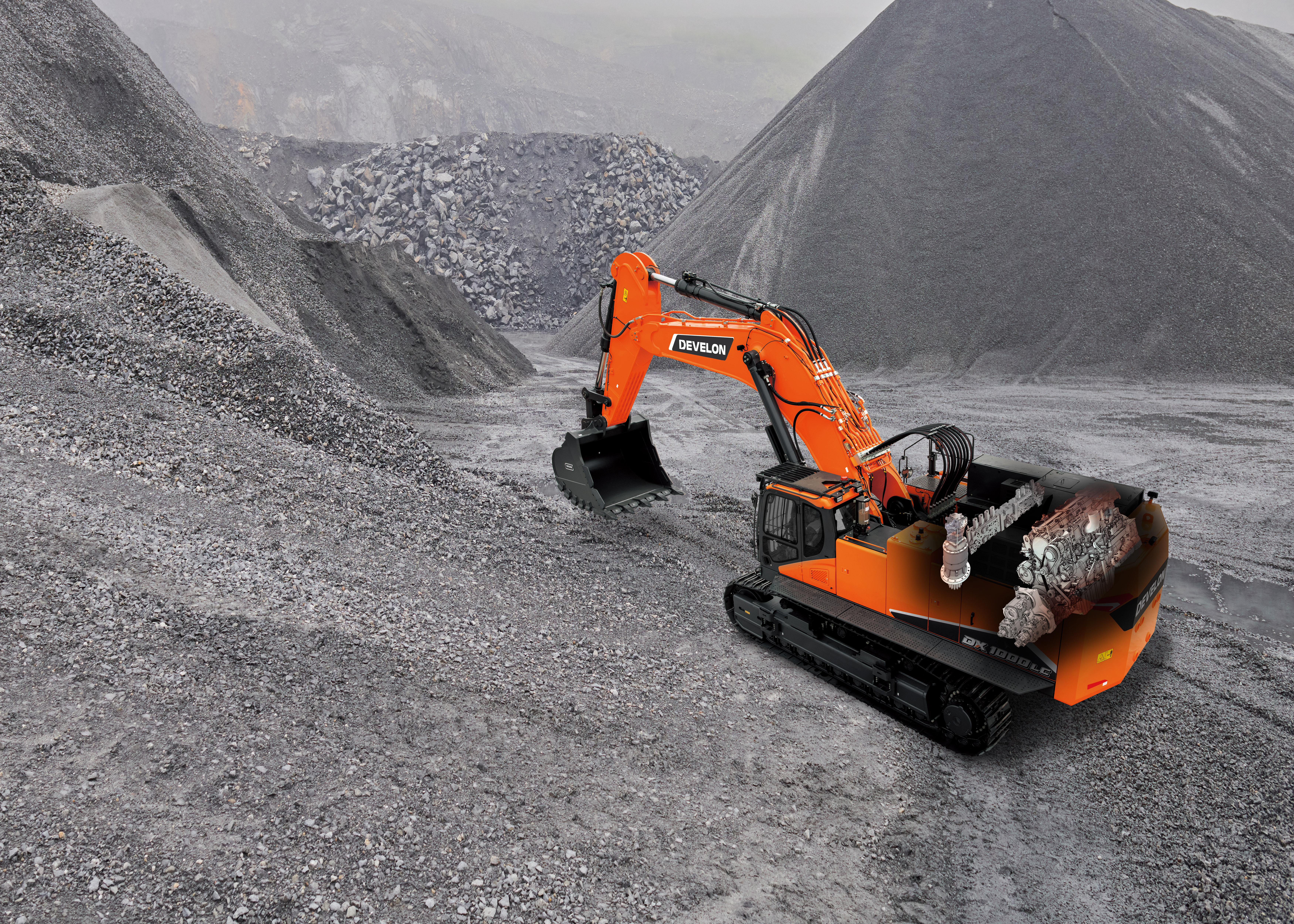

Crawler Excavators Develon DX1000LC-7

Visit Develon live at

Technical specs - DX1000LC-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
99.5 t
Transport length
14.55 m
Transport width
4.492 m
Transport height
5.55 m
Bucket capacity
5.4 m³
Bucket capacity min.
5.4 m³
Bucket capacity max.
6.8 m³
Undercarriage
LC
Track width
900 mm
Boom
MB
Max. Reach horizontal
14 m
Dredging depth
8.795 m
Tear-out force
472.9 kN
Bucket width
2.32 m
Model series
DX
Engine manuf.
Perkins
Engine type
2806J
Engine power
469 kW
Dimension lxwxh
1545x1141x1334 mm
Displacement
18.1 l
Revolutions at max torque
2000 rpm
Max. torque
2952 Nm
No. of cylinders
6
Cylinder bore x stroke
145 x 183 mm
Emission level
Stage V

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Develon DX1000LC-7 FAQ

When was the Develon DX1000LC-7 manufactured?

The Develon DX1000LC-7 was first produced in 2023.

How much does the Develon DX1000LC-7 weigh?

The Develon DX1000LC-7 weighs 99.5 tons.

What are the transport dimensions of the Develon DX1000LC-7 crawler excavator?

The Develon DX1000LC-7 has a transport length of 14.55 meters, a transport width of 4.492 meters, and a transport height of 5.55 meters.

What are the undercarriage specifications of the Develon DX1000LC-7?

The Develon DX1000LC-7 has a long undercarriage with a track width of 900 mm.

What are the excavation performance specifications of the Develon DX1000LC-7?

The Develon DX1000LC-7 has a dredging depth of 8.795 meters, a maximum horizontal reach of 14 meters, and features a monobloc boom.

What is the tear-out force of the Develon DX1000LC-7, and are there any power ratings provided?

The Develon DX1000LC-7 has a tear-out force of 472.9 kN. The source data does not provide any power ratings for this machine.

What are the specifications of the primary work tool bucket on the Develon DX1000LC-7?

The Develon DX1000LC-7 has a bucket capacity ranging from 5.4 to 6.8 cubic meters, with a standard bucket capacity of 5.4 cubic meters and a bucket width of 2.32 meters.

How much is a Develon DX1000LC-7 Crawler excavator (2023u20132025) worth?

The residual value of the Develon DX1000LC-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
