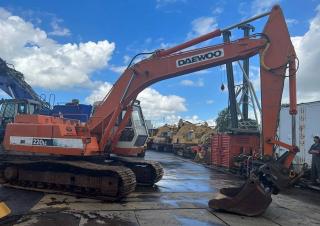

DH220LC Daewoo excavator specs & Dimensions (1992 - 2026)

Daewoo DH220LC is a crawler excavator manufactured since 1992. It has a weight of 21 tons and a track width of 810 mm. The transpo…

Daewoo DH220LC is a crawler excavator manufactured since 1992. It has a weight of 21 tons and a track width of 810 mm. The transport dimensions are 9 meters in length, 3 meters in width, and 2 meters in height. The machine features a tear-out force of 120 kN, a dredging depth of 6 meters, and a maximum horizontal reach of 9 meters. The bucket capacity is up to 1 cubic meter. Special equipment includes air conditioning, cabin adjustment, a diesel particulate filter, and track adjustment.

Crawler Excavators Daewoo DH220LC

Technical specs - DH220LC Daewoo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21 t
Transport length
9.6 m
Transport width
3.1 m
Transport height
2.99 m
Bucket capacity min.
0.45 m³
Bucket capacity max.
1.2 m³
Undercarriage
LC
Track width
810 mm
Boom
MB
Max. Reach horizontal
9.98 m
Dredging depth
6.6 m
Tear-out force
120 kN
Engine manuf.
Daewoo
Engine type
D1146
Engine power
99 kW
Displacement
8071 l
Revolutions at max torque
1600 rpm
Max. torque
490 Nm
No. of cylinders
6
Cylinder bore x stroke
111 x 139 mm

More technical details, like: bucket capacity, bucket width, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Daewoo DH220LC FAQ

When was the Daewoo DH220LC manufactured?

The Daewoo DH220LC was first produced in 1992.

How much does the Daewoo DH220LC weigh?

The Daewoo DH220LC weighs 21 tons.

What are the transport dimensions of the Daewoo DH220LC crawler excavator?

The Daewoo DH220LC has a transport length of 9.6 meters, a transport width of 3.1 meters, and a transport height of 2.99 meters.

What are the undercarriage specifications of the Daewoo DH220LC?

The Daewoo DH220LC has a long undercarriage and a track width of 810 mm.

What are the excavation performance specifications of the Daewoo DH220LC?

The Daewoo DH220LC has a dredging depth of 6.6 meters, a maximum horizontal reach of 9.98 meters, and features a monobloc boom.

What are the power ratings of the Daewoo DH220LC?

There is no power rating information available for the Daewoo DH220LC in the provided data.

What is the maximum bucket capacity of the Daewoo DH220LC?

The Daewoo DH220LC has a maximum bucket capacity of 1.2 cubic meters.

How much is a Daewoo DH220LC Crawler excavator (1992u20132025) worth?

The residual value of the Daewoo DH220LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
