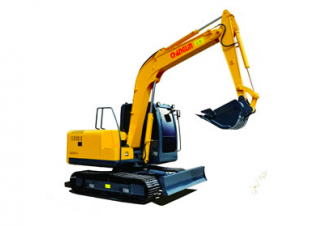

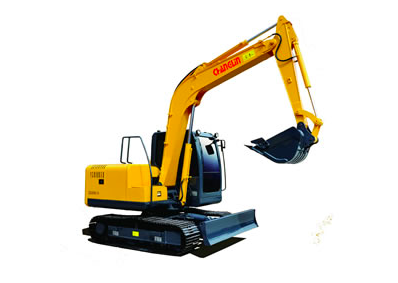

ZG3085-9 Changlin excavator specs & Dimensions (2017 - 2026)

Changlin ZG3085-9 is a Crawler Excavator manufactured since 2017. It has a weight of 8.1 tons and a track width of 450 mm. The tra…

Changlin ZG3085-9 is a Crawler Excavator manufactured since 2017. It has a weight of 8.1 tons and a track width of 450 mm. The transport dimensions are 6.45 meters in length, 2.21 meters in width, and 2.615 meters in height. The machine features a tear-out force of 53 kN, a dredging depth of 4.245 meters, and a maximum horizontal reach of 6.675 meters. The bucket capacity is 0.37 cubic meters.

Crawler Excavators Changlin ZG3085-9

Technical specs - ZG3085-9 Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.1 t
Transport length
6.45 m
Transport width
2.21 m
Transport height
2.615 m
Bucket capacity
0.37 m³
Undercarriage
SL
Track width
450 mm
Max. Reach horizontal
6.675 m
Dredging depth
4.245 m
Tear-out force
53 kN
Model series
ZG
Engine manuf.
Yanmar
Engine type
4TNV98T-SFN
Engine power
53.1 kW
Displacement
3.319 l
Max. torque
312.7 Nm
No. of cylinders
4

More technical details, like: bucket capacity min., bucket capacity max., boom, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Changlin ZG3085-9 FAQ

When was the Changlin ZG3085-9 manufactured?

The Changlin ZG3085-9 was first produced in 2017.

How much does the Changlin ZG3085-9 weigh?

The Changlin ZG3085-9 weighs 8.1 tons.

What are the transport dimensions of the Changlin ZG3085-9 crawler excavator?

The Changlin ZG3085-9 has a transport length of 6.45 meters, a transport width of 2.21 meters, and a transport height of 2.62 meters.

What are the undercarriage specifications of the Changlin ZG3085-9?

The Changlin ZG3085-9 has a standard undercarriage with a track width of 450 mm.

What is the excavation performance of the Changlin ZG3085-9?

The Changlin ZG3085-9 has a dredging depth of 4.245 meters and a maximum horizontal reach of 6.675 meters.

What is the tear-out force of the Changlin ZG3085-9?

The Changlin ZG3085-9 has a tear-out force of 53 kN. No power rating data is provided for this model.

What is the bucket capacity of the Changlin ZG3085-9 crawler excavator?

The Changlin ZG3085-9 crawler excavator has a bucket capacity of 0.37 cubic meters.
