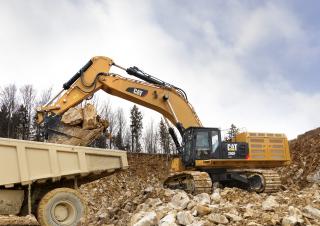

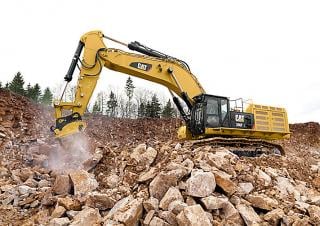

390F L Caterpillar excavator specs & Dimensions (2014 - 2020)
-
Model rating
- 5,50 / 10
.jpg)
.jpg)
Technical specs - 390F L Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 87.906 t
- Transport length
- 14.5 m
- Transport width
- 4.45 m
- Transport height
- 5.84 m
- Bucket capacity
- 2.2 m³
- Undercarriage
- SL
- Track width
- 650 mm
- Boom
- MB
- Max. Reach horizontal
- 15.73 m
- Dredging depth
- 10.75 m
- Tear-out force
- 365 kN
- Bucket width
- 1.1 m
- Engine manuf.
- Caterpillar
- Engine type
- C18 Acert
- Engine power
- 405 kW
- Displacement
- 18.1 l
- Cylinder bore x stroke
- 145x183 mm
- Emission level
- Stage IV/Tier 4 Final
More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.
Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket
Special equipment
- Diesel particulate filter
-
No
- Track adjustment
-
No
- Blade
-
No
- Cabin adjustment
-
No
- Overload alert
-
No
- Material Handling Excavator
-
No
- Aircondition
-
Yes
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
Download specalog and datasheets (PDF)
