349F L XE Caterpillar excavator specs & Dimensions (2017 - 2019)

Caterpillar 349F L XE is a Crawler Excavator manufactured from 2017 to 2019. It has a weight of 49.11 tons and a track width of 60…

Caterpillar 349F L XE is a Crawler Excavator manufactured from 2017 to 2019. It has a weight of 49.11 tons and a track width of 600 mm. The transport dimensions are 11.93 meters in length, 3.34 meters in width, and 3.67 meters in height. The machine offers a tear-out force of 268 kN, a dredging depth of 8.21 meters, and a maximum horizontal reach of 12.15 meters. The bucket capacity is 3.1 cubic meters.

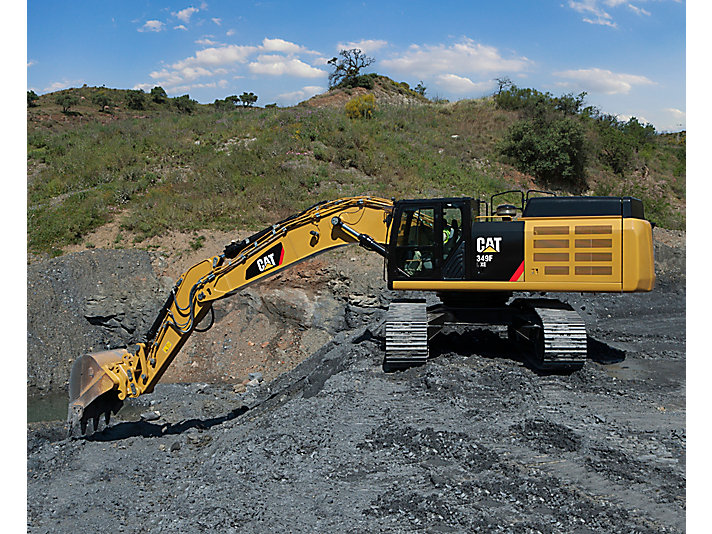

Crawler Excavators Caterpillar 349F L XE

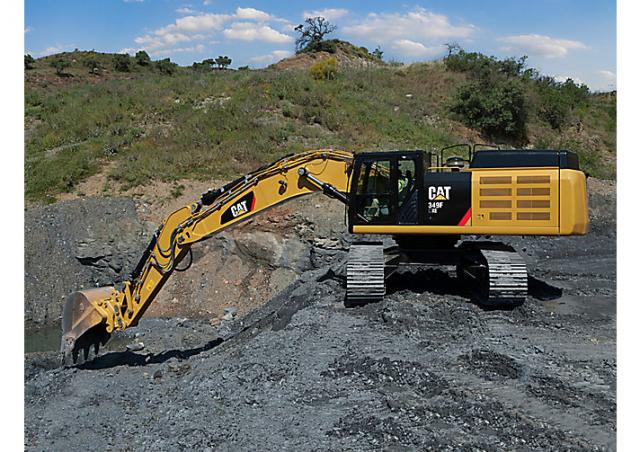

Crawler Excavators Caterpillar 349F L XE

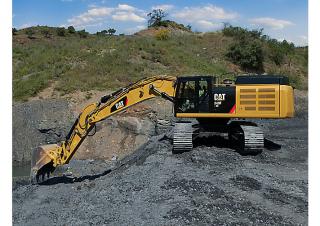

Crawler Excavators Caterpillar 349F L XE
Crawler Excavators Caterpillar 349F L XE

Technical specs - 349F L XE Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
49.11 t
Transport length
11.93 m
Transport width
3.34 m
Transport height
3.67 m
Bucket capacity
3.1 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
12.15 m
Dredging depth
8.21 m
Tear-out force
268 kN
Engine manuf.
Caterpillar
Engine type
C13 Acert
Engine power
317 kW
Displacement
12.5 l
Cylinder bore x stroke
130x157 mm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 349F L XE FAQ

When was the Caterpillar 349F L XE manufactured?

The Caterpillar 349F L XE was manufactured from 2017 to 2019.

How much does the Caterpillar 349F L XE weigh?

The Caterpillar 349F L XE weighs 49.11 tons.

What are the transport dimensions of the Caterpillar 349F L XE?

The Caterpillar 349F L XE has a transport length of 11.93 meters, a transport width of 3.34 meters, and a transport height of 3.67 meters.

What are the undercarriage specifications of the Caterpillar 349F L XE?

The Caterpillar 349F L XE has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 349F L XE?

The Caterpillar 349F L XE has a dredging depth of 8.21 meters, a maximum horizontal reach of 12.15 meters, and features a Monobloc boom.

What are the power ratings of the Caterpillar 349F L XE?

The source data does not provide power ratings for the Caterpillar 349F L XE.

What is the bucket capacity of the Caterpillar 349F L XE?

The Caterpillar 349F L XE has a bucket capacity of 3.1 cubic meters.

How much is a Caterpillar 349F L XE Crawler excavator (2017u20132019) worth?

The residual value of the Caterpillar 349F L XE depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
