345C Caterpillar excavator specs & Dimensions (2007 - 2026)

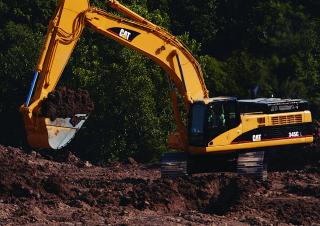

Caterpillar 345C is a Crawler Excavator manufactured since 2007, with a weight of 63.8 tons. It features a track width of 600 mm, …

Caterpillar 345C is a Crawler Excavator manufactured since 2007, with a weight of 63.8 tons. It features a track width of 600 mm, a transport length of 17.8 meters, a transport width of 2.4 meters, and a transport height of 3.72 meters. The maximum horizontal reach of the excavator is 16.4 meters.

Crawler Excavators Caterpillar 345C

Technical specs - 345C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
63.8 t
Transport length
17.8 m
Transport width
2.4 m
Transport height
3.72 m
Track width
600 mm
Max. Reach horizontal
16.4 m
Engine manuf.
Caterpillar
Engine type
C13 Acert
Engine power
239 kW

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 345C FAQ

When was the Caterpillar 345C manufactured?

The Caterpillar 345C was first produced in 2007.

How much does the Caterpillar 345C weigh?

The Caterpillar 345C weighs 63.8 tons.

What are the transport dimensions of the Caterpillar 345C?

The Caterpillar 345C has a transport length of 17.8 meters, a transport width of 2.4 meters, and a transport height of 3.72 meters.

What is the track width of the Caterpillar 345C's undercarriage?

The Caterpillar 345C has a track width of 600 mm.

What is the maximum horizontal reach of the Caterpillar 345C during excavation?

The Caterpillar 345C has a maximum horizontal reach of 16.4 meters during excavation.
