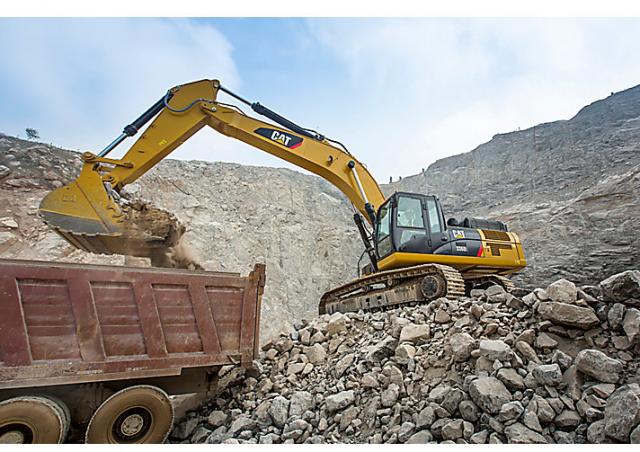

336D2 L Caterpillar excavator specs & Dimensions (2017 - 2019)

Caterpillar 336D2 L is a Crawler Excavator manufactured from 2017 to 2019. It has a weight of 37.086 tons and a track width of 600…

Caterpillar 336D2 L is a Crawler Excavator manufactured from 2017 to 2019. It has a weight of 37.086 tons and a track width of 600 mm. The transport dimensions are 11.19 meters in length, 3.19 meters in width, and 3.49 meters in height. The machine features a tear-out force of 211.1 kN, a dredging depth of 7.51 meters, and a maximum horizontal reach of 11.05 meters. The bucket width is 1.5 meters, with a bucket capacity of 1.88 cubic meters.

336D2 L

Years of manufacture: 2017—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 336D2 L Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 37.086 t

Transport length: 11.19 m

Transport width: 3.19 m

Transport height: 3.49 m

Bucket capacity: 1.88 m³

Undercarriage: HD

Track width: 600 mm

Boom: MB

Max. Reach horizontal: 11.05 m

Dredging depth: 7.51 m

Tear-out force: 211.1 kN

Bucket width: 1.5 m

Engine manuf.: Caterpillar

Engine type: C9 Acert

Engine power: 208 kW

Displacement: 8.8 l

Cylinder bore x stroke: 112x149 mm

Emission level: U.S. EPA Tier 3 / EU IIIA

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Track adjustment: No
Blade: No
Cabin adjustment: No
Overload alert: No
Material Handling Excavator: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 336D2 L FAQ

When was the Caterpillar 336D2 L manufactured?

The Caterpillar 336D2 L was manufactured from 2017 to 2019.

How much does the Caterpillar 336D2 L weigh?

The Caterpillar 336D2 L weighs 37.09 tons.

What are the transport dimensions of the Caterpillar 336D2 L crawler excavator?

The Caterpillar 336D2 L has a transport length of 11.19 meters, a transport width of 3.19 meters, and a transport height of 3.49 meters.

What is the fuel consumption range of the Caterpillar 336D2 L?

The Caterpillar 336D2 L has a fuel consumption range of 15 to 29 liters per hour.

What are the undercarriage specifications of the Caterpillar 336D2 L?

The Caterpillar 336D2 L has a heavy duty undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 336D2 L?

The Caterpillar 336D2 L has a dredging depth of 7.51 meters, a maximum horizontal reach of 11.05 meters, and features a monobloc boom.

What is the tear-out force of the Caterpillar 336D2 L?

The Caterpillar 336D2 L has a tear-out force of 211.1 kN.

What are the bucket specifications of the Caterpillar 336D2 L crawler excavator?

The Caterpillar 336D2 L has a bucket capacity of 1.88 cubic meters and a bucket width of 1.5 meters.

How much is a Caterpillar 336D2 L Crawler excavator (2017u20132019) worth?

The residual value of the Caterpillar 336D2 L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
