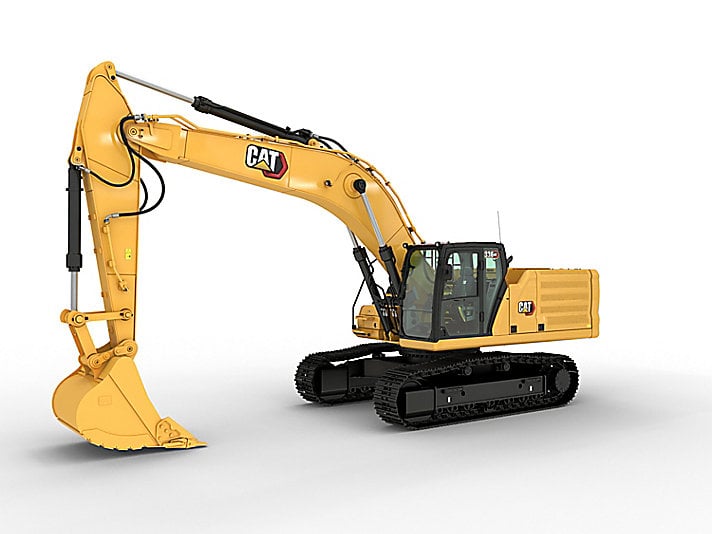

336 GC Caterpillar excavator specs & Dimensions (2020 - 2022)

Caterpillar 336 GC is a Crawler Excavator manufactured from 2020 to 2022, with a weight of 34.6 tons. It features a track width of…

Caterpillar 336 GC is a Crawler Excavator manufactured from 2020 to 2022, with a weight of 34.6 tons. It features a track width of 600 mm, a transport length of 11.18 meters, a transport width of 3.29 meters, and a transport height of 3.17 meters. The machine has a tear-out force of 196 kN, a dredging depth of 7.53 meters, and a maximum horizontal reach of 11.06 meters. It is equipped with a bucket capacity of 1.88 cubic meters and includes air conditioning as special equipment.

Crawler Excavators Caterpillar 336 GC

Technical specs - 336 GC Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
34.6 t
Transport length
11.18 m
Transport width
3.29 m
Transport height
3.17 m
Bucket capacity
1.88 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.06 m
Dredging depth
7.53 m
Tear-out force
196 kN
Engine manuf.
Caterpillar
Engine type
C7.1
Engine power
205 kW
Displacement
7.01 l
Cylinder bore x stroke
105x135 mm
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 336 GC FAQ

When was the Caterpillar 336 GC manufactured?

The Caterpillar 336 GC was manufactured from 2020 to 2022.

How much does the Caterpillar 336 GC weigh?

The Caterpillar 336 GC weighs 34.6 tons.

What are the transport dimensions of the Caterpillar 336 GC?

The Caterpillar 336 GC has a transport length of 11.18 meters, a transport width of 3.29 meters, and a transport height of 3.17 meters.

What are the undercarriage specifications of the Caterpillar 336 GC?

The Caterpillar 336 GC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 336 GC?

The Caterpillar 336 GC has a dredging depth of 7.53 meters, a maximum horizontal reach of 11.06 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar 336 GC, given that power ratings are not provided?

The Caterpillar 336 GC does not have power ratings listed, but it has a tear-out force of 196 kN.

What is the bucket capacity of the Caterpillar 336 GC excavator?

The Caterpillar 336 GC excavator has a bucket capacity of 1.88 cubic meters.

How much is a Caterpillar 336 GC Crawler excavator (2020u20132022) worth?

The residual value of the Caterpillar 336 GC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
