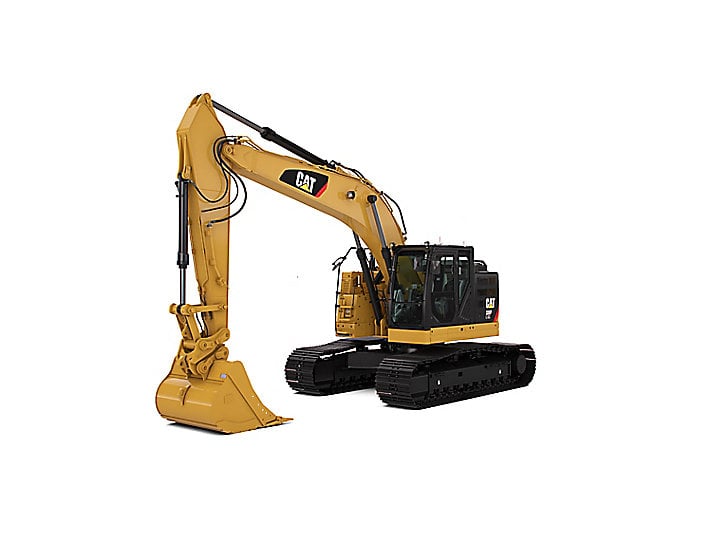

335F L Caterpillar excavator specs & Dimensions (2015 - 2017)

Caterpillar 335F L is a Crawler Excavator manufactured from 2015 to 2017, with a weight of 34.58 tons. It features a track width o…

Caterpillar 335F L is a Crawler Excavator manufactured from 2015 to 2017, with a weight of 34.58 tons. It features a track width of 600 mm, a transport length of 9.82 meters, a transport width of 3.19 meters, and a transport height of 3.54 meters. The excavator has a tear-out force of 179 kN, a dredging depth of 6.99 meters, and a maximum horizontal reach of 10.64 meters. It comes with a bucket width of 1.35 meters and a bucket capacity of 1.54 cubic meters. Special equipment includes air conditioning, cabin adjustment, quick hitch hydraulic, and track adjustment.

335F L

Years of manufacture: 2015—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 335F L Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 34.58 t

Transport length: 9.82 m

Transport width: 3.19 m

Transport height: 3.54 m

Bucket capacity: 1.54 m³

Track width: 600 mm

Boom: MB

Max. Reach horizontal: 10.64 m

Dredging depth: 6.99 m

Tear-out force: 179 kN

Bucket width: 1.35 m

Engine manuf.: Caterpillar

Engine type: C7.1 Acert

Engine power: 152 kW

Displacement: 7 l

Cylinder bore x stroke: 105x135 mm

Emission level: IV

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Track adjustment: Yes
Blade: No
Cabin adjustment: Yes
Overload alert: No
Material Handling Excavator: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download specalog and datasheets (PDF)

335F L Caterpillar Specification for Europe (DE)

Caterpillar 335F L FAQ

When was the Caterpillar 335F L manufactured?

The Caterpillar 335F L was manufactured from 2015 to 2017.

How much does the Caterpillar 335F L weigh?

The Caterpillar 335F L weighs 34.58 tons.

What are the transport dimensions of the Caterpillar 335F L crawler excavator?

The Caterpillar 335F L crawler excavator has a transport length of 9.82 meters, a transport width of 3.19 meters, and a transport height of 3.54 meters.

What is the fuel consumption range of the Caterpillar 335F L crawler excavator?

The Caterpillar 335F L crawler excavator has a fuel consumption range of 14 to 20 liters per hour.

What is the track width of the Caterpillar 335F L's undercarriage?

The Caterpillar 335F L has a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 335F L?

The Caterpillar 335F L has a dredging depth of 6.99 meters, a maximum horizontal reach of 10.64 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar 335F L?

The Caterpillar 335F L has a tear-out force of 179 kN.

What are the specifications of the primary work tool bucket on the Caterpillar 335F L?

The primary work tool bucket of the Caterpillar 335F L has a capacity of 1.54 cubic meters and a width of 1.35 meters.

How much is a Caterpillar 335F Lu00a0 Crawler excavator (2015u20132017) worth?

The residual value of the Caterpillar 335F Lu00a0 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
