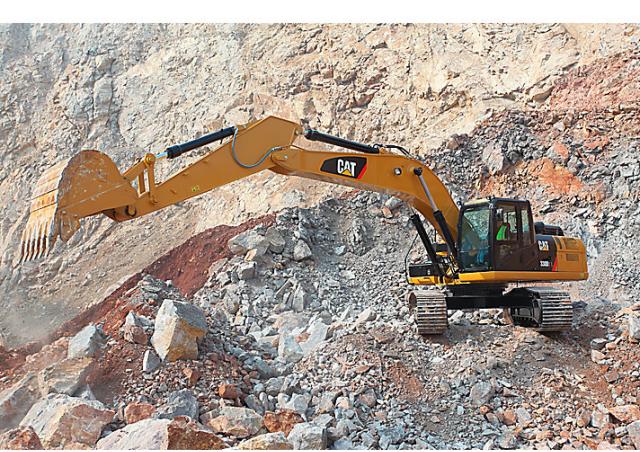

330D2 (Tier 2) Caterpillar excavator specs & Dimensions (2017 - 2026)

Caterpillar 330D2 (Tier 2) is a Crawler Excavator manufactured since 2017. It has a weight of 28.98 tons and a track width of 600 …

Caterpillar 330D2 (Tier 2) is a Crawler Excavator manufactured since 2017. It has a weight of 28.98 tons and a track width of 600 mm. The transport dimensions are 10.36 meters in length, 3.19 meters in width, and 3.33 meters in height. The machine features a tear-out force of 179 kN, a dredging depth of 7.29 meters, and a maximum horizontal reach of 10.72 meters. The bucket width is 1.4 meters, with a bucket capacity of 1.54 cubic meters.

Crawler Excavators Caterpillar 330D2 (Tier 2)
Crawler Excavators Caterpillar 330D2 (Tier 2)
Crawler Excavators Caterpillar 330D2 (Tier 2)
Crawler Excavators Caterpillar 330D2 (Tier 2)

Technical specs - 330D2 (Tier 2) Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
28.98 t
Transport length
10.36 m
Transport width
3.19 m
Transport height
3.33 m
Bucket capacity
1.54 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.72 m
Dredging depth
7.29 m
Tear-out force
179 kN
Bucket width
1.4 m
Model series
2
Engine manuf.
Caterpillar
Engine type
C7.1 Acert
Engine power
157 kW
Displacement
7 l
Revolutions at max torque
1400 rpm
Max. torque
900 Nm
Cylinder bore x stroke
105x135 mm
Emission level
Tier 2 / EU II

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 330D2 (Tier 2) FAQ

When was the Caterpillar 330D2 (Tier 2) manufactured?

The Caterpillar 330D2 (Tier 2) was first produced in 2017.

How much does the Caterpillar 330D2 (Tier 2) weigh?

The Caterpillar 330D2 (Tier 2) weighs 28.98 tons.

What are the transport dimensions of the Caterpillar 330D2 (Tier 2)?

The Caterpillar 330D2 (Tier 2) has a transport length of 10.36 meters, a transport width of 3.19 meters, and a transport height of 3.33 meters.

What is the fuel consumption of the Caterpillar 330D2 (Tier 2) crawler excavator?

The Caterpillar 330D2 (Tier 2) crawler excavator has a fuel consumption range of 13 to 20 liters per hour, with an average fuel consumption of 16.3 liters per hour.

What are the undercarriage specifications of the Caterpillar 330D2 (Tier 2)?

The Caterpillar 330D2 (Tier 2) has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 330D2 (Tier 2)?

The Caterpillar 330D2 (Tier 2) has a dredging depth of 7.29 meters, a maximum horizontal reach of 10.72 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar 330D2 (Tier 2)?

The Caterpillar 330D2 (Tier 2) has a tear-out force of 179 kN.

What are the specifications of the primary work tool bucket on the Caterpillar 330D2 (Tier 2)?

The primary work tool bucket of the Caterpillar 330D2 (Tier 2) has a capacity of 1.54 cubic meters and a width of 1.4 meters.

How much is a Caterpillar 330D2 (Tier 2) Crawler excavator (2017u20132025) worth?

The residual value of the Caterpillar 330D2 (Tier 2) depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
