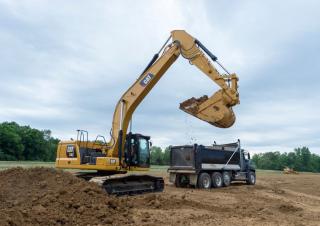

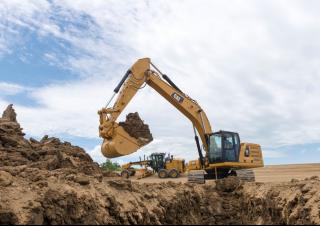

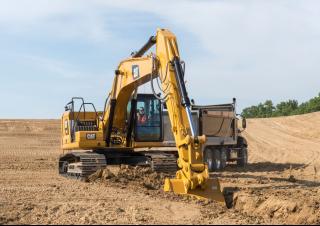

330 Caterpillar excavator specs & Dimensions (2019 - 2026)

Caterpillar 330 is a crawler excavator manufactured since 2019. It has a weight of 30 tons and a track width of 600 mm. The transp…

Caterpillar 330 is a crawler excavator manufactured since 2019. It has a weight of 30 tons and a track width of 600 mm. The transport dimensions are 10.42 meters in length, 1.39 meters in width, and 3.4 meters in height. The machine features a tear-out force of 157 kN, a dredging depth of 7.24 meters, and a maximum horizontal reach of 10.68 meters. The bucket capacity is 1.76 cubic meters, and it is equipped with air conditioning.

330

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 330 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 30 t

Transport length: 10.42 m

Transport width: 1.39 m

Transport height: 3.4 m

Bucket capacity: 1.76 m³

Undercarriage: LC

Track width: 600 mm

Boom: MB

Max. Reach horizontal: 10.68 m

Dredging depth: 7.24 m

Tear-out force: 157 kN

Engine manuf.: Caterpillar

Engine type: C7.1

Engine power: 205 kW

Displacement: 7.01 l

Cylinder bore x stroke: 105x135 mm

Emission level: EU V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Click and see the specifications of Caterpillar 330 in the PDF

Special equipment

Diesel particulate filter: No
Track adjustment: No
Blade: No
Cabin adjustment: No
Overload alert: No
Material Handling Excavator: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 330 FAQ

When was the Caterpillar 330 manufactured?

The Caterpillar 330 was first produced in 2019.

How much does the Caterpillar 330 weigh?

The Caterpillar 330 weighs 30 tons.

What are the transport dimensions of the Caterpillar 330 crawler excavator?

The Caterpillar 330 has a transport length of 10.42 meters, a transport width of 1.39 meters, and a transport height of 3.4 meters.

What are the undercarriage specifications of the Caterpillar 330?

The Caterpillar 330 has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 330?

The Caterpillar 330 has a dredging depth of 7.24 meters, a maximum horizontal reach of 10.68 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar 330?

The Caterpillar 330 has a tear-out force of 157 kN.

What is the bucket capacity of the Caterpillar 330 crawler excavator?

The Caterpillar 330 crawler excavator has a bucket capacity of 1.76 cubic meters.

How much is a Caterpillar 330 Crawler excavator (2019u20132025) worth?

The residual value of the Caterpillar 330 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
