329E LN Caterpillar excavator specs & Dimensions (2012 - 2019)

Model rating
7,00 / 10

Caterpillar 329E LN is a crawler excavator manufactured from 2012 to 2019. It has a weight of 29.5 tons and a track width of 600 m…

Caterpillar 329E LN is a crawler excavator manufactured from 2012 to 2019. It has a weight of 29.5 tons and a track width of 600 mm. The transport dimensions are 10.386 meters in length, 3.19 meters in width, and 3.3 meters in height. The tear-out force is 126 kN, and it features track adjustment as special equipment.

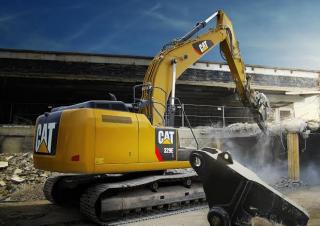

Crawler Excavators Caterpillar 329E LN
Crawler Excavators Caterpillar 329E LN
Crawler Excavators Caterpillar 329E LN
Crawler Excavators Caterpillar 329E LN

Technical specs - 329E LN Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29.5 t
Transport length
10.386 m
Transport width
3.19 m
Transport height
3.3 m
Bucket capacity
1.61 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.68 m
Dredging depth
7.25 m
Tear-out force
126 kN
Engine manuf.
Caterpillar
Engine type
C7.1 Acert
Engine power
173 kW
Displacement
7 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 329E LN FAQ

When was the Caterpillar 329E LN manufactured?

The Caterpillar 329E LN was manufactured from 2012 to 2019.

How much does the Caterpillar 329E LN weigh?

The Caterpillar 329E LN weighs 29.5 tons.

What are the transport dimensions of the Caterpillar 329E LN?

The Caterpillar 329E LN has a transport length of 10.39 meters, a transport width of 3.19 meters, and a transport height of 3.3 meters.

What is the fuel consumption range of the Caterpillar 329E LN?

The Caterpillar 329E LN has a fuel consumption range of 15 to 29 liters per hour.

What are the undercarriage specifications of the Caterpillar 329E LN?

The Caterpillar 329E LN has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 329E LN?

The Caterpillar 329E LN has a dredging depth of 7.25 meters, a maximum horizontal reach of 10.68 meters, and is equipped with a monobloc boom.

What is the power rating of the Caterpillar 329E LN?

The source data does not provide power rating information for the Caterpillar 329E LN.

What is the bucket capacity of the Caterpillar 329E LN excavator?

The Caterpillar 329E LN excavator has a bucket capacity of 1.61 cubic meters.

How much is a Caterpillar 329E LN Crawler excavator (2012u20132019) worth?

The residual value of the Caterpillar 329E LN depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
