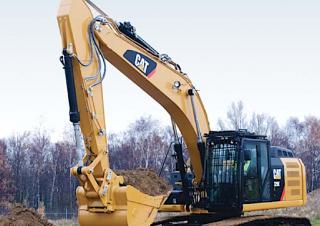

329E Caterpillar excavator specs & Dimensions (2011 - 2026)

Caterpillar 329E is a crawler excavator manufactured since 2011, with a weight of 31.27 tons. It features a track width of 600 mm,…

Caterpillar 329E is a crawler excavator manufactured since 2011, with a weight of 31.27 tons. It features a track width of 600 mm, a transport length of 10.38 meters, a transport width of 3.19 meters, and a transport height of 3.37 meters. The machine has a dredging depth of 7.25 meters and a maximum horizontal reach of 10.68 meters.

Crawler Excavators Caterpillar 329E

Technical specs - 329E Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
31.27 t
Transport length
10.38 m
Transport width
3.19 m
Transport height
3.37 m
Track width
600 mm
Max. Reach horizontal
10.68 m
Dredging depth
7.25 m
Engine manuf.
Caterpillar
Engine type
C7.1 Acert
Engine power
173 kW
Displacement
7 l

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 329E FAQ

When was the Caterpillar 329E manufactured?

The Caterpillar 329E was first produced in 2011.

How much does the Caterpillar 329E weigh?

The Caterpillar 329E weighs 31.27 tons.

What are the transport dimensions of the Caterpillar 329E?

The Caterpillar 329E has a transport length of 10.38 meters, a transport width of 3.19 meters, and a transport height of 3.37 meters.

What is the fuel consumption of the Caterpillar 329E crawler excavator?

The Caterpillar 329E crawler excavator has a fuel consumption range of 15 to 29 liters per hour, with an average consumption of 21.3 liters per hour.

What is the track width of the Caterpillar 329E's undercarriage?

The Caterpillar 329E has a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 329E?

The Caterpillar 329E has a dredging depth of 7.25 meters and a maximum horizontal reach of 10.68 meters.

How much is a Caterpillar 329E Crawler excavator (2011u20132025) worth?

The residual value of the Caterpillar 329E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
