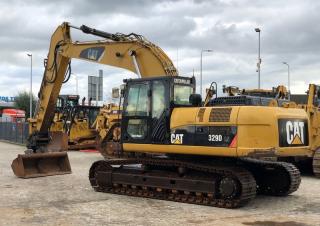

329D LN Caterpillar excavator specs & Dimensions (2008 - 2011)

Model rating
5,50 / 10

Caterpillar 329D LN is a Crawler Excavator manufactured from 2008 to 2011. It has a weight of 28.4 tons and a track width of 600 m…

Caterpillar 329D LN is a Crawler Excavator manufactured from 2008 to 2011. It has a weight of 28.4 tons and a track width of 600 mm. The transport dimensions are 10.42 meters in length, 2.99 meters in width, and 3.19 meters in height. The tear-out force is 155 kN. This model includes air conditioning as special equipment.

Crawler Excavators Caterpillar 329D LN

Technical specs - 329D LN Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
28.4 t
Transport length
10.42 m
Transport width
2.99 m
Transport height
3.19 m
Bucket capacity
1.61 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.52 m
Dredging depth
6.62 m
Tear-out force
155 kN
Bucket width
1.35 m
Engine manuf.
Caterpillar
Engine type
C7 Acert
Engine power
152 kW
Displacement
7.2 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 329D LN FAQ

When was the Caterpillar 329D LN manufactured?

The Caterpillar 329D LN was manufactured from 2008 to 2011.

How much does the Caterpillar 329D LN weigh?

The Caterpillar 329D LN weighs 28.4 tons.

What are the transport dimensions of the Caterpillar 329D LN crawler excavator?

The Caterpillar 329D LN has a transport length of 10.42 meters, a transport width of 2.99 meters, and a transport height of 3.19 meters.

What are the undercarriage specifications of the Caterpillar 329D LN?

The Caterpillar 329D LN has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 329D LN?

The Caterpillar 329D LN has a dredging depth of 6.62 meters, a maximum horizontal reach of 9.52 meters, and is equipped with a Monobloc boom.

What is the tear-out force of the Caterpillar 329D LN?

The Caterpillar 329D LN has a tear-out force of 155 kN.

What are the specifications of the primary work tool bucket on the Caterpillar 329D LN?

The primary work tool bucket of the Caterpillar 329D LN has a capacity of 1.61 cubic meters and a width of 1.35 meters.
