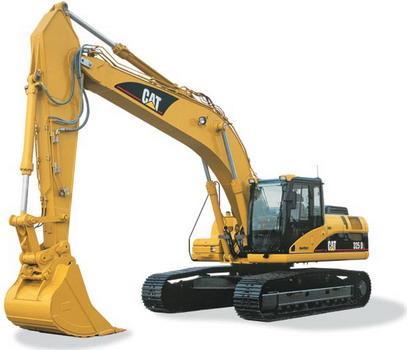

325D LN Caterpillar excavator specs & Dimensions (2006 - 2008)

Caterpillar 325D LN is a crawler excavator manufactured from 2006 to 2008, with a weight of 28.4 tons. It features a track width o…

Caterpillar 325D LN is a crawler excavator manufactured from 2006 to 2008, with a weight of 28.4 tons. It features a track width of 600 mm, a transport length of 10.42 meters, and a transport width of 3.19 meters. The machine has a tear-out force of 188 kN and comes equipped with air conditioning and a hydraulic quick hitch.

325D LN

Years of manufacture: 2006—2008

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 325D LN Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 28.4 t

Transport length: 10.42 m

Transport width: 3.19 m

Bucket capacity: 1.61 m³

Undercarriage: SL

Track width: 600 mm

Boom: MB

Max. Reach horizontal: 9.52 m

Dredging depth: 6.06 m

Tear-out force: 188 kN

Bucket width: 1.5 m

Engine manuf.: Caterpillar

Engine type: C7 Acert

Engine power: 152 kW

Displacement: 7.2 l

Revolutions at max torque: 1800 rpm

More technical details, like: transport height, bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Track adjustment: No
Blade: No
Cabin adjustment: No
Overload alert: No
Material Handling Excavator: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 325D LN FAQ

When was the Caterpillar 325D LN manufactured?

The Caterpillar 325D LN was manufactured from 2006 to 2008.

How much does the Caterpillar 325D LN weigh?

The Caterpillar 325D LN weighs 28.4 tons.

What are the transport dimensions of the Caterpillar 325D LN?

The Caterpillar 325D LN has a transport length of 10.42 meters and a transport width of 3.19 meters.

What are the undercarriage specifications of the Caterpillar 325D LN?

The Caterpillar 325D LN has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 325D LN?

The Caterpillar 325D LN has a dredging depth of 6.06 meters, a maximum horizontal reach of 9.52 meters, and features a monobloc boom.

What is the tear-out force of the Caterpillar 325D LN?

The Caterpillar 325D LN has a tear-out force of 188 kN.

What are the bucket specifications of the Caterpillar 325D LN excavator?

The Caterpillar 325D LN excavator has a bucket capacity of 1.61 cubic meters and a bucket width of 1.5 meters.
