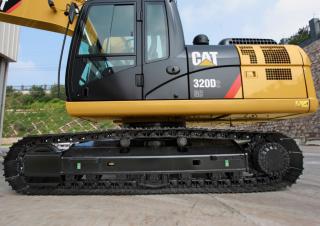

320D2 GC (Tier 3) Caterpillar excavator specs & Dimensions (2017 - 2019)

Caterpillar 320D2 GC (Tier 3) is a Crawler Excavator manufactured from 2017 to 2019. It has a weight of 20.8 tons and a track widt…

Caterpillar 320D2 GC (Tier 3) is a Crawler Excavator manufactured from 2017 to 2019. It has a weight of 20.8 tons and a track width of 790 mm. The transport dimensions are 9.46 meters in length, 2.99 meters in width, and 3.03 meters in height. The excavator features a tear-out force of 140 kN, a dredging depth of 6.73 meters, and a maximum horizontal reach of 9.87 meters. The bucket width is 1.05 meters with a capacity of 1 cubic meter.

Crawler Excavators Caterpillar 320D2 GC (Tier 3)
Crawler Excavators Caterpillar 320D2 GC (Tier 3)
Crawler Excavators Caterpillar 320D2 GC (Tier 3)
Crawler Excavators Caterpillar 320D2 GC (Tier 3)

Technical specs - 320D2 GC (Tier 3) Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.8 t
Transport length
9.46 m
Transport width
2.99 m
Transport height
3.03 m
Bucket capacity
1 m³
Undercarriage
SL
Track width
790 mm
Boom
MB
Max. Reach horizontal
9.87 m
Dredging depth
6.73 m
Tear-out force
140 kN
Bucket width
1.05 m
Model series
3
Engine manuf.
Caterpillar
Engine type
C4.4 Acert
Engine power
85 kW
Displacement
4.4 l
Cylinder bore x stroke
105x127 mm
Emission level
U.S. EPA Tier 3 / EU IIIA

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 320D2 GC (Tier 3) FAQ

When was the Caterpillar 320D2 GC (Tier 3) manufactured?

The Caterpillar 320D2 GC (Tier 3) was manufactured from 2017 to 2019.

How much does the Caterpillar 320D2 GC (Tier 3) weigh?

The Caterpillar 320D2 GC (Tier 3) weighs 20.8 tons.

What are the transport dimensions of the Caterpillar 320D2 GC (Tier 3)?

The Caterpillar 320D2 GC (Tier 3) has a transport length of 9.46 meters, a transport width of 2.99 meters, and a transport height of 3.03 meters.

What are the undercarriage specifications of the Caterpillar 320D2 GC (Tier 3)?

The Caterpillar 320D2 GC (Tier 3) has a standard undercarriage with a track width of 790 mm.

What are the excavation performance specifications of the Caterpillar 320D2 GC (Tier 3)?

The Caterpillar 320D2 GC (Tier 3) has a dredging depth of 6.73 meters, a maximum horizontal reach of 9.87 meters, and features a monobloc boom.

What is the tear-out force of the Caterpillar 320D2 GC (Tier 3)?

The Caterpillar 320D2 GC (Tier 3) has a tear-out force of 140 kN.

What are the specifications of the primary work tool on the Caterpillar 320D2 GC (Tier 3)?

The primary work tool of the Caterpillar 320D2 GC (Tier 3) has a bucket capacity of 1 cubic meter and a bucket width of 1.05 meters.

How much is a Caterpillar 320D2 GC (Tier 3) Crawler excavator (2017u20132019) worth?

The residual value of the Caterpillar 320D2 GC (Tier 3) depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
