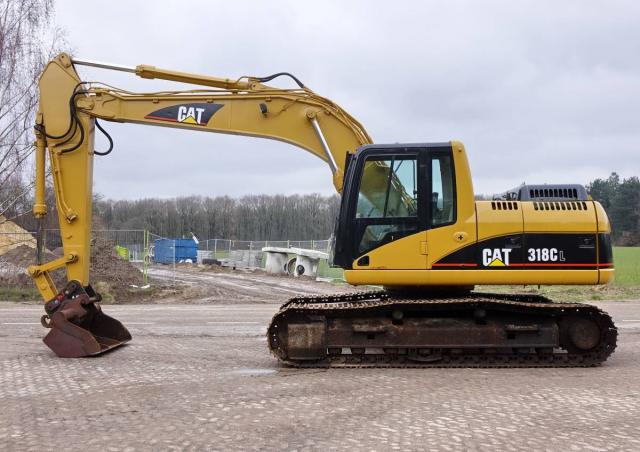

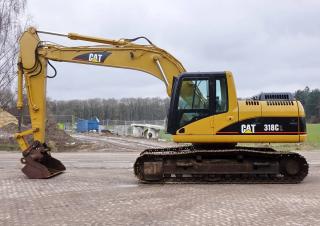

318C Caterpillar excavator specs & Dimensions (2005 - 2026)

Caterpillar 318C is a Crawler Excavator manufactured since 2005, with a weight of 20.35 tons. It features a track width of 600 mm,…

Caterpillar 318C is a Crawler Excavator manufactured since 2005, with a weight of 20.35 tons. It features a track width of 600 mm, a transport length of 8.87 meters, a transport width of 3.08 meters, and a transport height of 2.49 meters. The dredging depth is 5.92 meters, and the maximum horizontal reach is 8.65 meters.

Crawler Excavators Caterpillar 318C

Technical specs - 318C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.35 t
Transport length
8.87 m
Transport width
3.08 m
Transport height
2.49 m
Track width
600 mm
Max. Reach horizontal
8.65 m
Dredging depth
5.92 m
Engine manuf.
Caterpillar
Engine type
3066T
Engine power
93 kW

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 318C FAQ

When was the Caterpillar 318C manufactured?

The Caterpillar 318C was first produced in 2005.

How much does the Caterpillar 318C weigh?

The Caterpillar 318C weighs 20.35 tons.

What are the transport dimensions of the Caterpillar 318C?

The Caterpillar 318C has a transport length of 8.87 meters, a transport width of 3.08 meters, and a transport height of 2.49 meters.

What is the track width of the Caterpillar 318C's undercarriage?

The Caterpillar 318C has a track width of 600 mm.

What is the excavation performance of the Caterpillar 318C?

The Caterpillar 318C has a dredging depth of 5.92 meters and a maximum horizontal reach of 8.65 meters.

How much is a Caterpillar 318C Crawler excavator (2005u20132025) worth?

The residual value of the Caterpillar 318C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
