316E L Caterpillar excavator specs & Dimensions (2012 - 2017)

Model rating
7,00 / 10

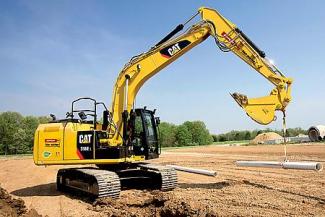

Caterpillar 316E L is a Crawler Excavator manufactured from 2012 to 2017. It has a weight of 17.6 tons and a track width of 500 mm…

Caterpillar 316E L is a Crawler Excavator manufactured from 2012 to 2017. It has a weight of 17.6 tons and a track width of 500 mm. The transport dimensions are 8.55 meters in length, 2.52 meters in width, and 3.18 meters in height. The tear-out force is 88 kN. Special equipment includes air conditioning, cabin adjustment, quick hitch hydraulic, and track adjustment.

Crawler Excavators Caterpillar 316E L

Technical specs - 316E L Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.6 t
Transport length
8.55 m
Transport width
2.52 m
Transport height
3.18 m
Bucket capacity
0.8 m³
Track width
500 mm
Boom
MB
Max. Reach horizontal
8.46 m
Dredging depth
5.74 m
Tear-out force
88 kN
Bucket width
1.1 m
Engine manuf.
Caterpillar
Engine type
C4.4 Acert
Engine power
89 kW
Displacement
4.4 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 316E L FAQ

When was the Caterpillar 316E L manufactured?

The Caterpillar 316E L was manufactured from 2012 to 2017.

How much does the Caterpillar 316E L weigh?

The Caterpillar 316E L weighs 17.6 tons.

What are the transport dimensions of the Caterpillar 316E L crawler excavator?

The Caterpillar 316E L has a transport length of 8.55 meters, a transport width of 2.52 meters, and a transport height of 3.18 meters.

What is the fuel consumption range of the Caterpillar 316E L?

The Caterpillar 316E L has a fuel consumption range of 8 to 13 liters per hour.

What is the track width of the Caterpillar 316E L crawler excavator?

The Caterpillar 316E L crawler excavator has a track width of 500 mm.

What are the excavation performance specifications of the Caterpillar 316E L?

The Caterpillar 316E L has a dredging depth of 5.74 meters, a maximum horizontal reach of 8.46 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar 316E L?

The Caterpillar 316E L has a tear-out force of 88 kN.

What are the specifications of the primary work tool on the Caterpillar 316E L?

The primary work tool of the Caterpillar 316E L has a bucket capacity of 0.8 cubic meters and a bucket width of 1.1 meters.

How much is a Caterpillar 316E L Crawler excavator (2012u20132017) worth?

The residual value of the Caterpillar 316E L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
