315F L Caterpillar excavator specs & Dimensions (2016 - 2020)

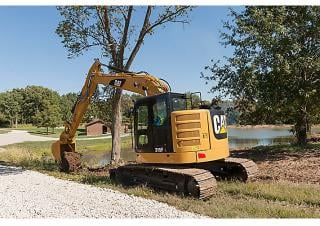

Caterpillar 315F L is a Crawler Excavator manufactured from 2016 to 2020. It has a weight of 15.1 tons and a track width of 500 mm…

Caterpillar 315F L is a Crawler Excavator manufactured from 2016 to 2020. It has a weight of 15.1 tons and a track width of 500 mm. The transport dimensions are 7.45 meters in length, 2.49 meters in width, and 3 meters in height. The excavator features a tear-out force of 85 kN, a dredging depth of 4.84 meters, and a maximum horizontal reach of 7.27 meters. The bucket width is 0.9 meters with a capacity of 0.53 cubic meters. Special equipment includes air conditioning, a blade, overload alert, and track adjustment.

315F L

Years of manufacture: 2016—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 315F L Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 15.1 t

Transport length: 7.45 m

Transport width: 2.49 m

Transport height: 3 m

Bucket capacity: 0.53 m³

Track width: 500 mm

Boom: MB

Max. Reach horizontal: 7.27 m

Dredging depth: 4.84 m

Tear-out force: 85 kN

Bucket width: 0.9 m

Engine manuf.: Caterpillar

Engine type: C4.4 Acert

Engine power: 72 kW

Displacement: 4.4 l

Cylinder bore x stroke: 105x127 mm

Emission level: Tier 4 Final

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Track adjustment: Yes
Blade: Yes
Cabin adjustment: No
Overload alert: Yes
Material Handling Excavator: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 315F L FAQ

When was the Caterpillar 315F L manufactured?

The Caterpillar 315F L was manufactured from 2016 to 2020.

How much does the Caterpillar 315F L weigh?

The Caterpillar 315F L weighs 15.1 tons.

What are the transport dimensions of the Caterpillar 315F L crawler excavator?

The Caterpillar 315F L crawler excavator has a transport length of 7.45 meters, a transport width of 2.49 meters, and a transport height of 3 meters.

What is the track width of the Caterpillar 315F L's undercarriage?

The Caterpillar 315F L has a track width of 500 mm.

What are the excavation performance specifications of the Caterpillar 315F L?

The Caterpillar 315F L has a dredging depth of 4.84 meters, a maximum horizontal reach of 7.27 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar 315F L?

The Caterpillar 315F L has a tear-out force of 85 kN.

What are the bucket specifications of the Caterpillar 315F L excavator?

The Caterpillar 315F L excavator has a bucket capacity of 0.53 cubic meters and a bucket width of 0.9 meters.
